Site-Specific Solution Design
We review cargo type, handling workflow, lifting height, platform layout, entrance direction and site conditions to develop a suitable lift structure.

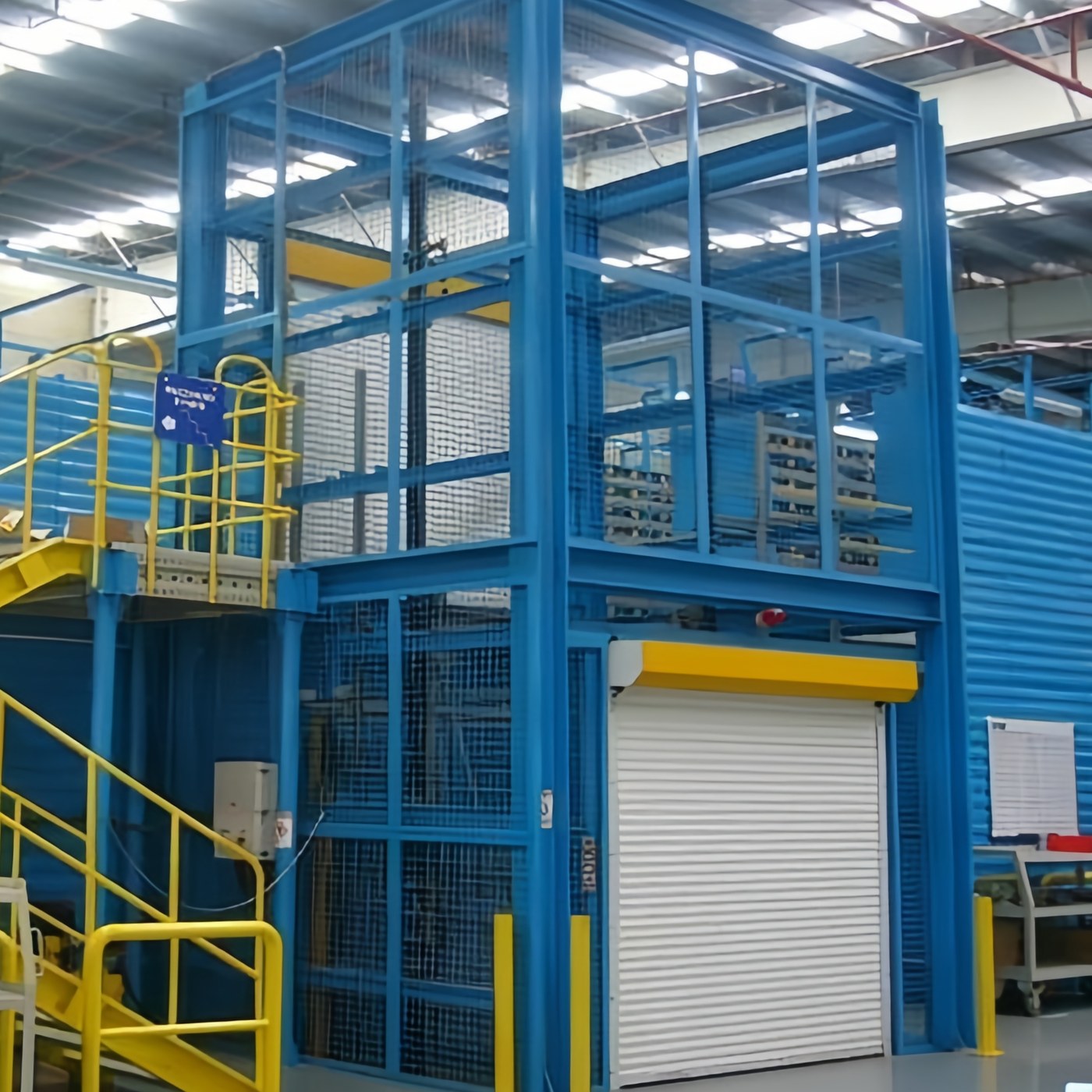

Custom Cargo Lift & Goods Lift for Warehouse and Mezzanine
Factory-direct cargo-only hydraulic goods lifts designed around your load, lifting height, platform size and site condition.
Factory-Direct Custom Goods Lift Supplier
Cargo-only hydraulic lift solutions for warehouse, factory and mezzanine material handling projects.
A cargo-only goods lift is used to move materials between floors in warehouses, factories, workshops and mezzanine areas. It is commonly searched as a cargo lift, freight lift, warehouse lift or mezzanine lift, and each project can be customized according to load, lifting height, platform size and site condition.
- 0.5-5 Tons CapacityCommon customized range for warehouse, workshop and mezzanine cargo handling.
- Custom Size & HeightPlatform size and lifting height are designed according to your site dimensions.
- Flexible EntranceOne-side, opposite-side or adjacent-side entrance options can be discussed.
- Local VoltageHydraulic power unit and control system are configured by destination country.
- Safety ProtectionAnti-Sinking Support Lock and Mechanical Fall Arrest Device can be configured by load and working condition.
- Drawing Before QuoteQuotation is prepared after key dimensions and site conditions are confirmed.
‹
›
Factory & Project Capability
Built for Custom Cargo-Only Goods Lift Projects
We specialize in custom hydraulic goods lifts for factories, warehouses and mezzanine material handling. With 12 years of project experience and 5,000+ lifting equipment units delivered, we confirm load capacity, cargo type, platform size, lifting height, entrance direction and site conditions before production. Based on the actual handling scenario and workflow, we design and manufacture a suitable cargo-only goods lift solution for each project.
Reliable Safety & Key Components
Guide rail, hydraulic, electrical and mechanical protection are selected around the capacity and working condition, including suitable anti-sinking or fall-arrest options where needed.
Installation-Ready Technical Support
Before shipment, we provide confirmed dimensions, drawings, marked parts, photos, videos and technical information to support your local installation team.
Production Control & Long-Term Service
Key structure, hydraulic and control items are checked before packing. We remain available for operation, maintenance and replacement-part communication after delivery.

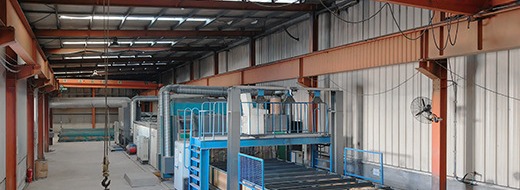

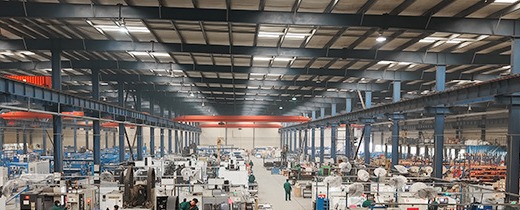

Production Equipment

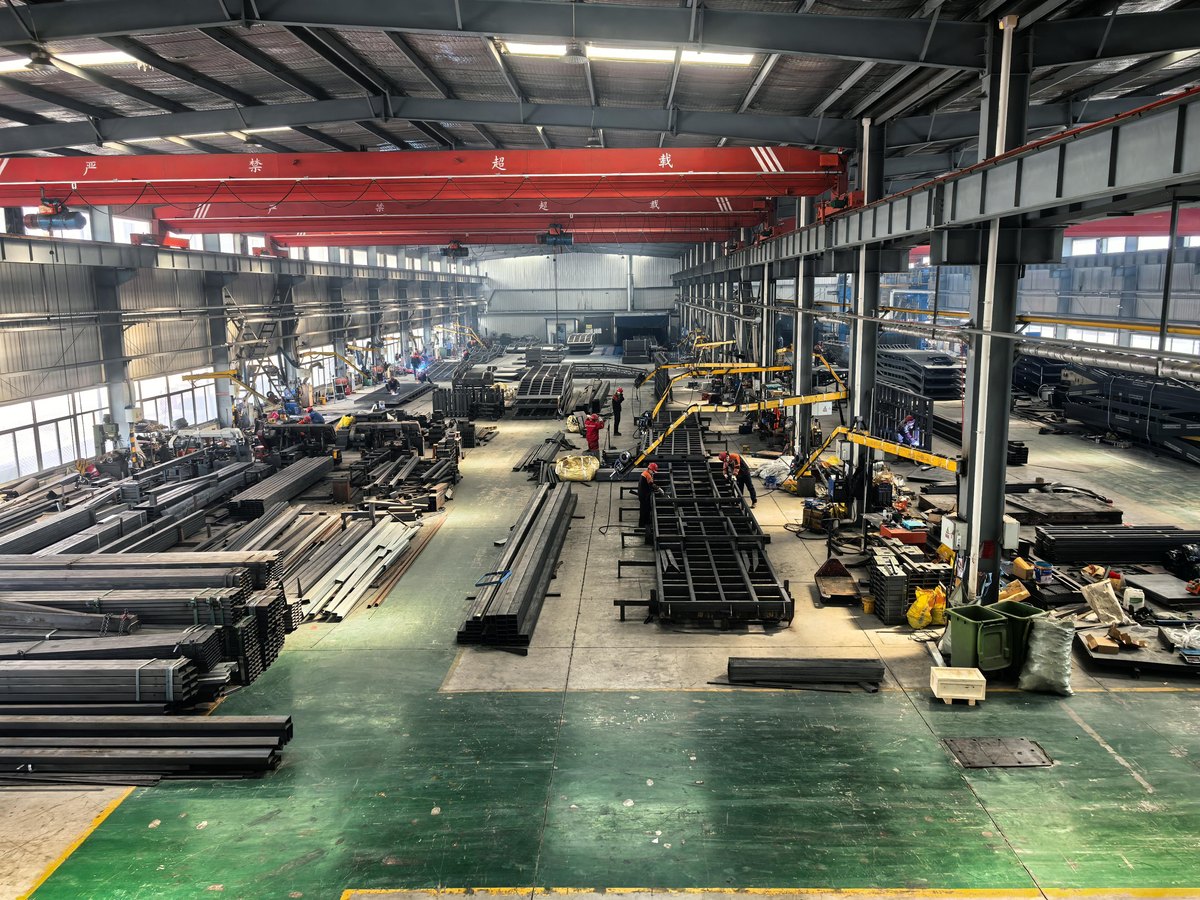

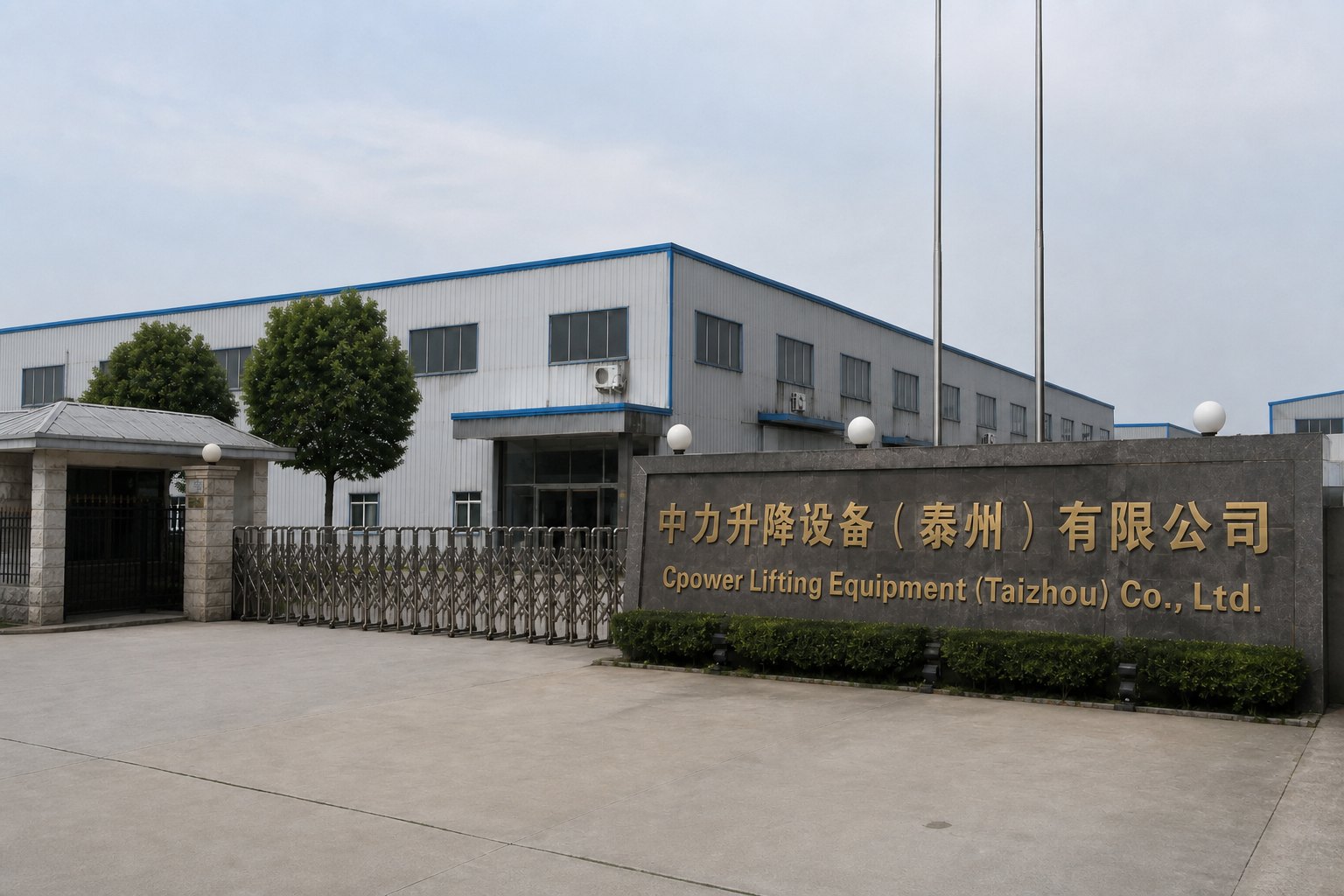

Workshop Scale

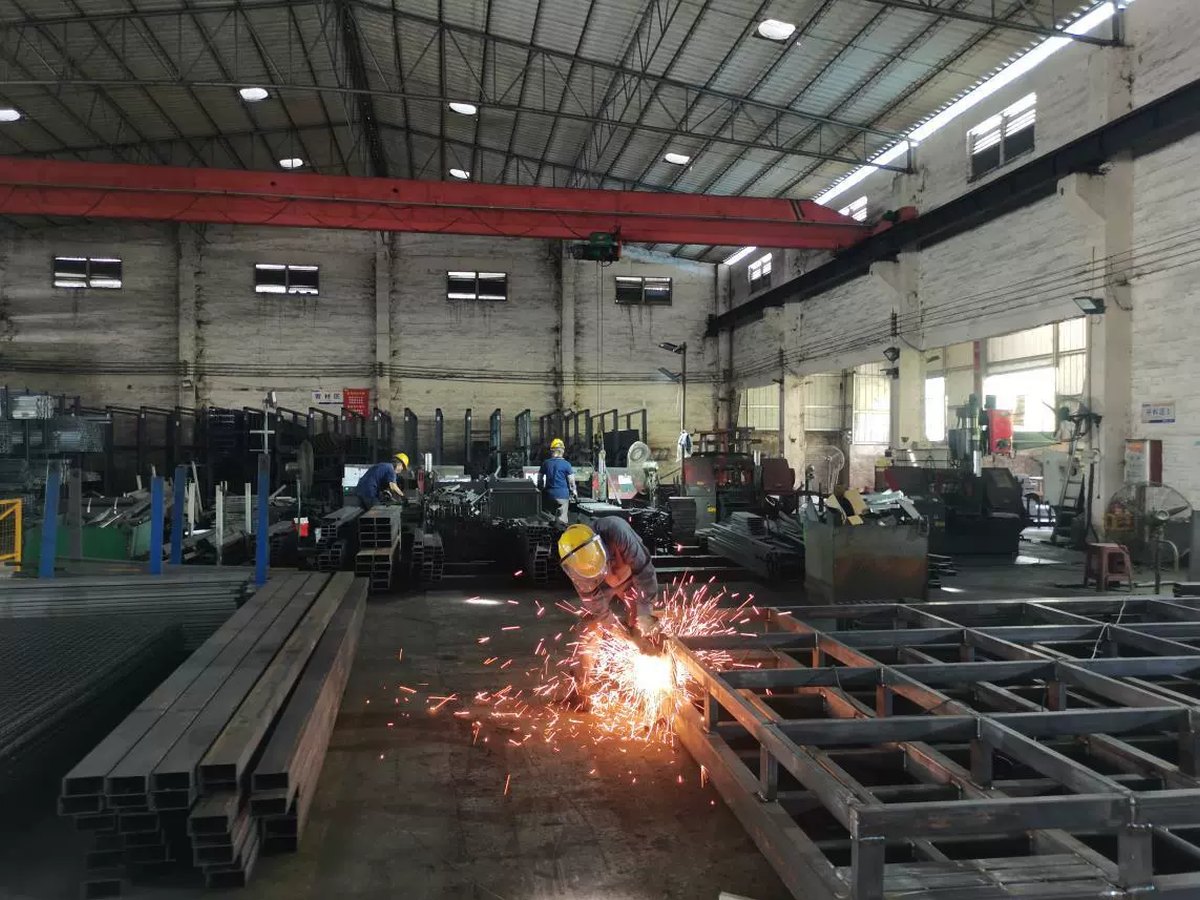

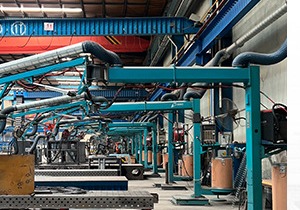

Welding & Fabrication

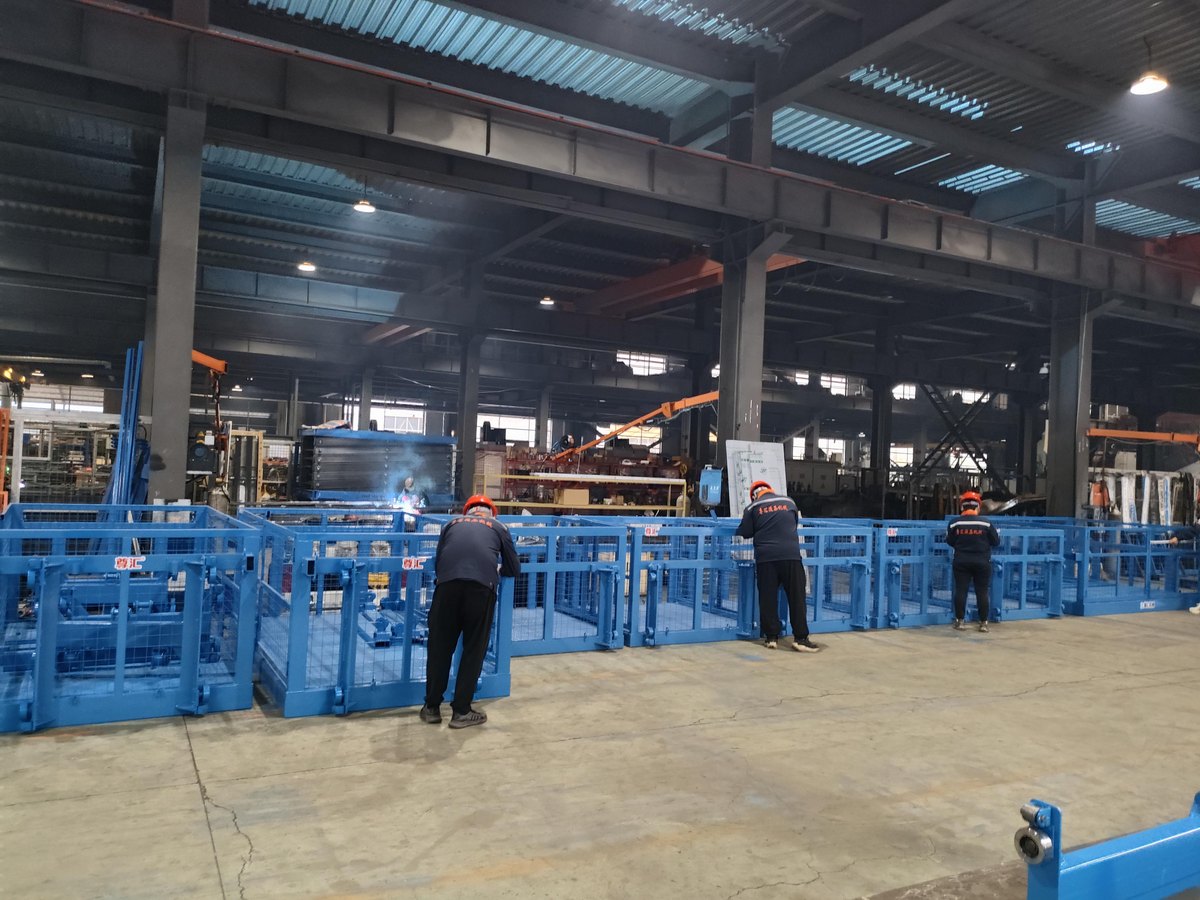

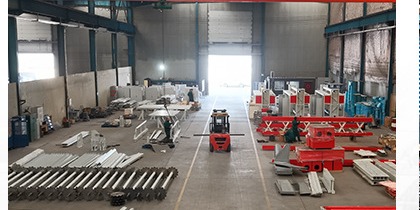

Goods Lift AssemblyChoose a Goods Lift Structure by Load and Site Condition
Use these typical structures as a starting point. Final design depends on your cargo, floors and installation space.
Typical capacity ranges for cargo-only hydraulic goods lifts
Light-Duty Goods Lift
- Capacity: 0.5-1 ton
- Compact platform size
Standard Goods Lift
- Capacity: 1-3 tons
- Common choice for warehouses and factories

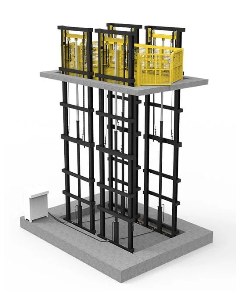

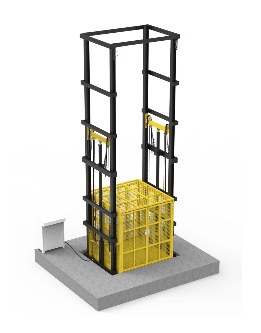

Heavy-Duty Goods Lift
- Capacity: 3-5 tons
- For larger platforms and heavier cargo
Common enclosure and entrance styles
Mesh Enclosure with Swing Door
- Mesh enclosure for safer cargo handling
- Swing door entrance
Full Cover with Roller Door
- Suitable for warehouse loading areas
- Roller door can save entrance space
Fully Enclosed Cargo Platform
- For sites that require a more enclosed cargo area
- Door and control method should be confirmed by project
Typical Reference Configurations
These are common reference sizes. Final structure, platform size and lifting height should be confirmed by site dimensions and project drawings.
| Model | Load Capacity | Lifting Height | Platform Size |
|---|---|---|---|
| ZL1-3 | 500 kg | 3,000 mm | 1,000 × 1,200 mm |
| ZL1-4 | 1,000 kg | 4,000 mm | 2,000 × 1,600 mm |
| ZL2-4.5 | 2,000 kg | 4,500 mm | 2,500 × 2,000 mm |
| ZL3-5.5 | 3,000 kg | 5,500 mm | 3,000 × 2,300 mm |
| ZL5-7 | 5,000 kg | 7,000 mm | 4,000 × 3,500 mm |
| Custom Size | Send Requirements |
Reliable Parts & Manufacturing Details
Key Parts & Safety System for Goods Lift
For a custom cargo-only hydraulic goods lift, the guide rail structure, hydraulic system, electrical control and mechanical protection should match the load capacity, lifting height, platform size and site condition.
- Hydraulic and electrical parts are checked before shipment.
- Anti-drop and fall arrest devices are selected according to capacity and working condition.
- Photos and detail videos can be provided to support local installation work.

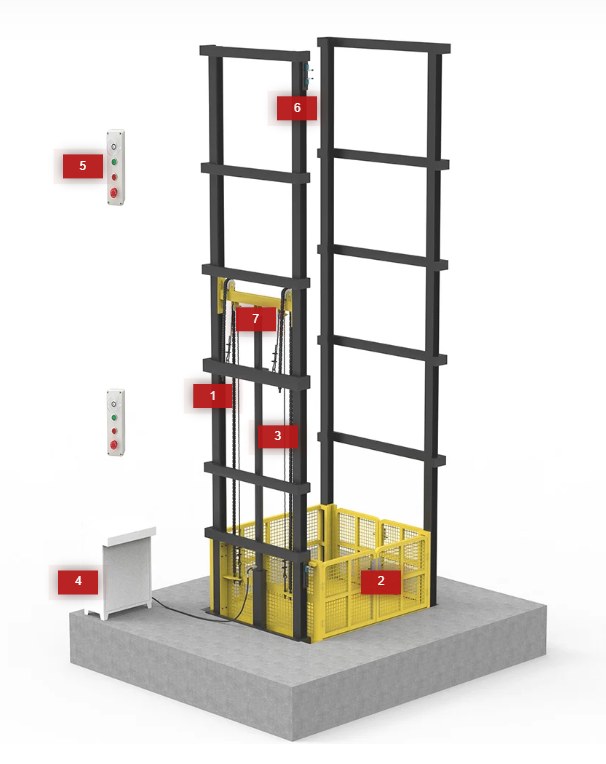

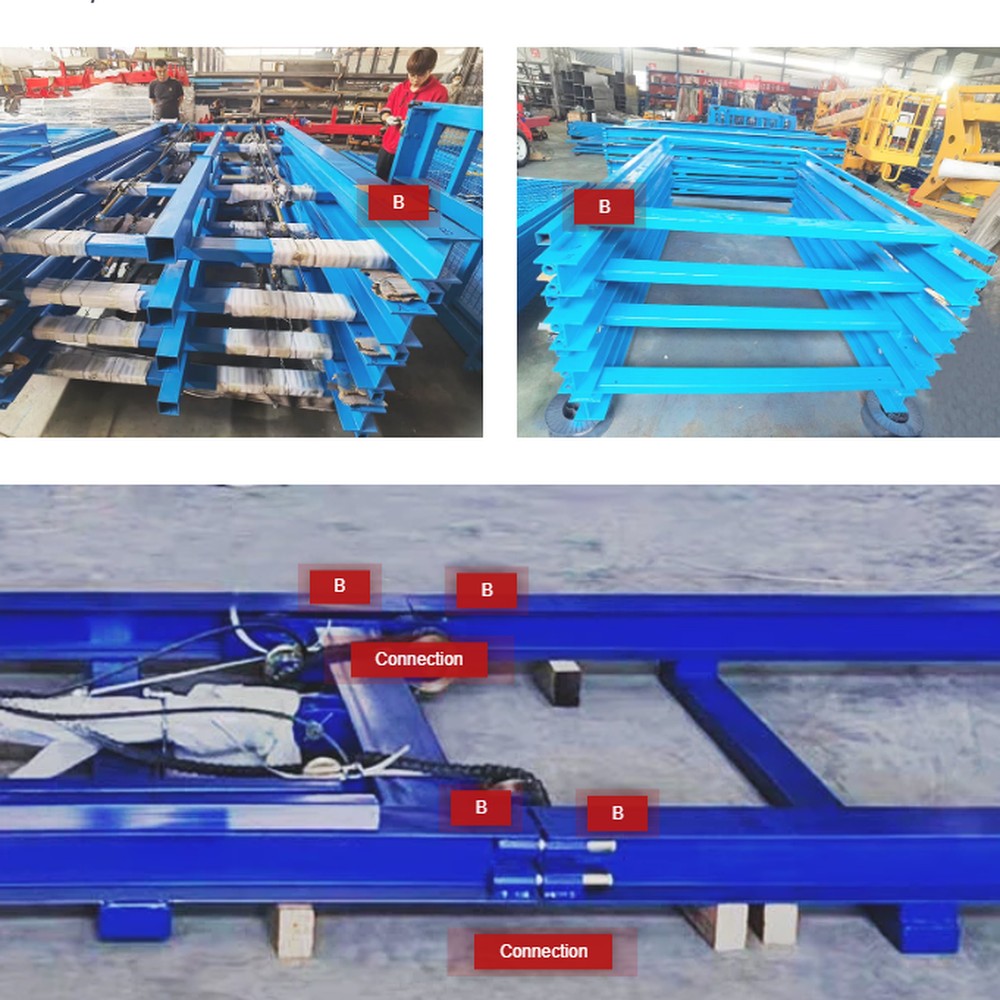

Guide Rail StructureSteel guide rail structure is designed according to load, lifting height and installation site.

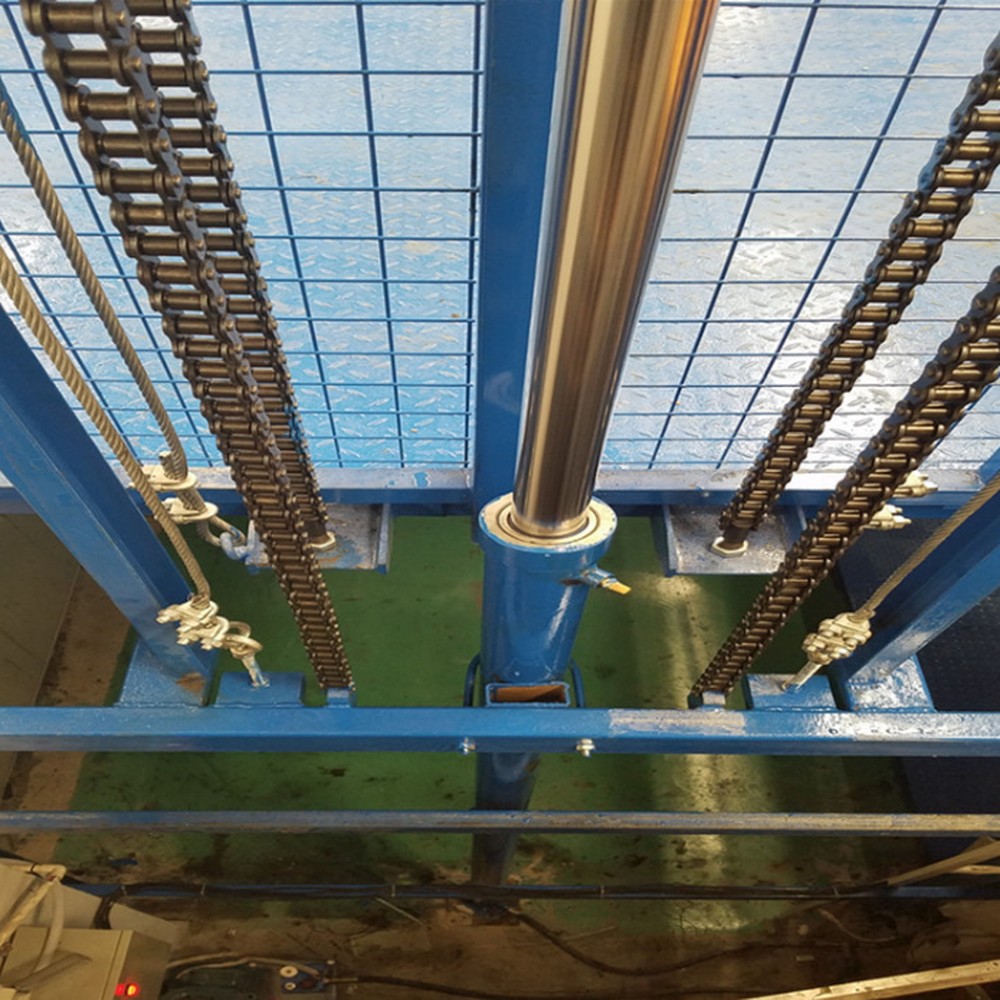

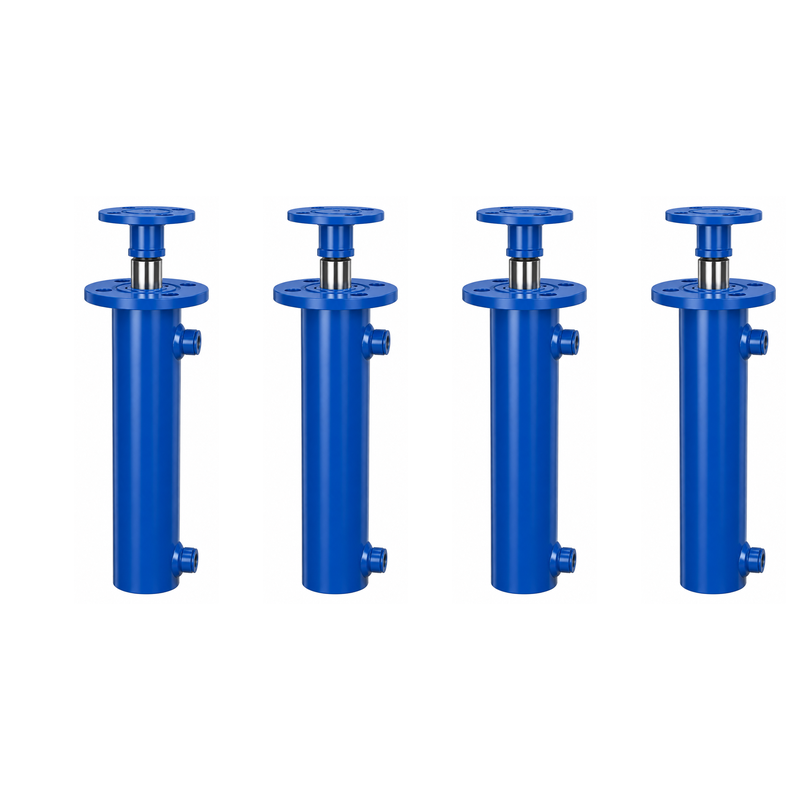

Hydraulic CylinderHydraulic lifting system is configured for stable cargo-only vertical movement.

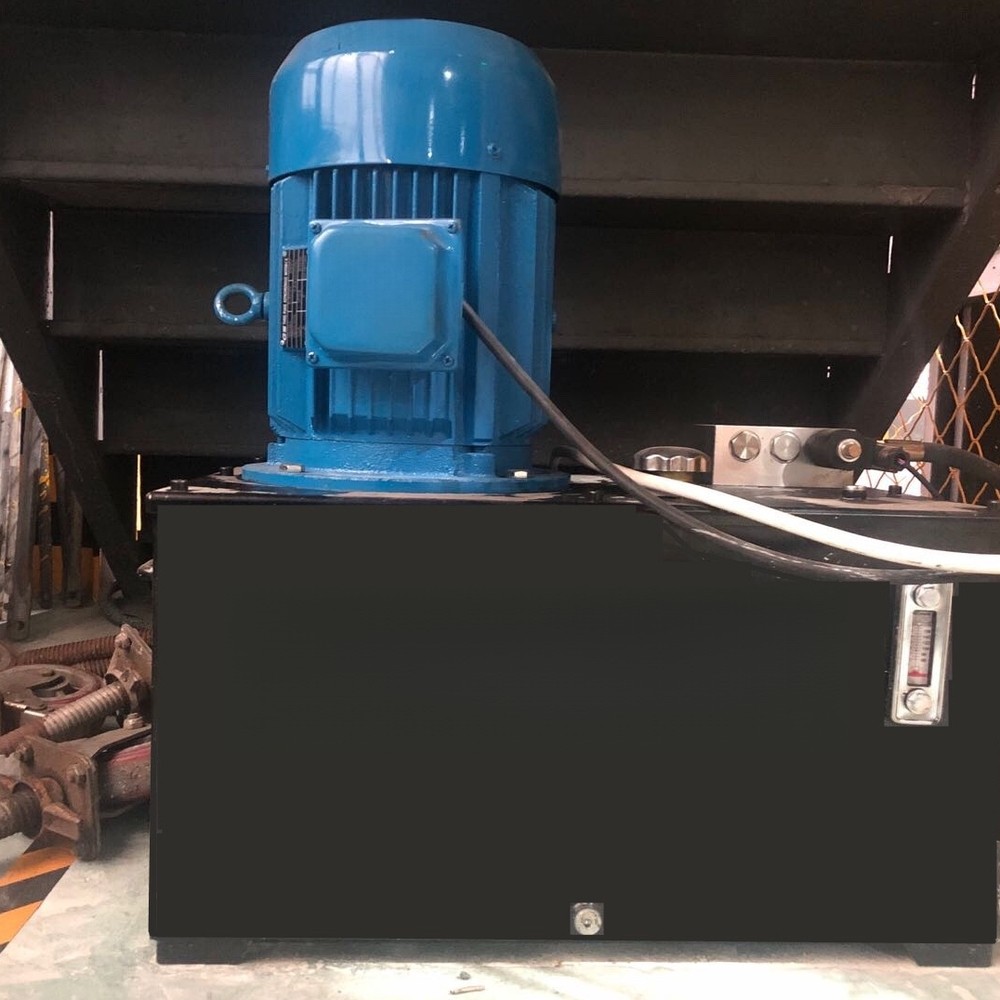

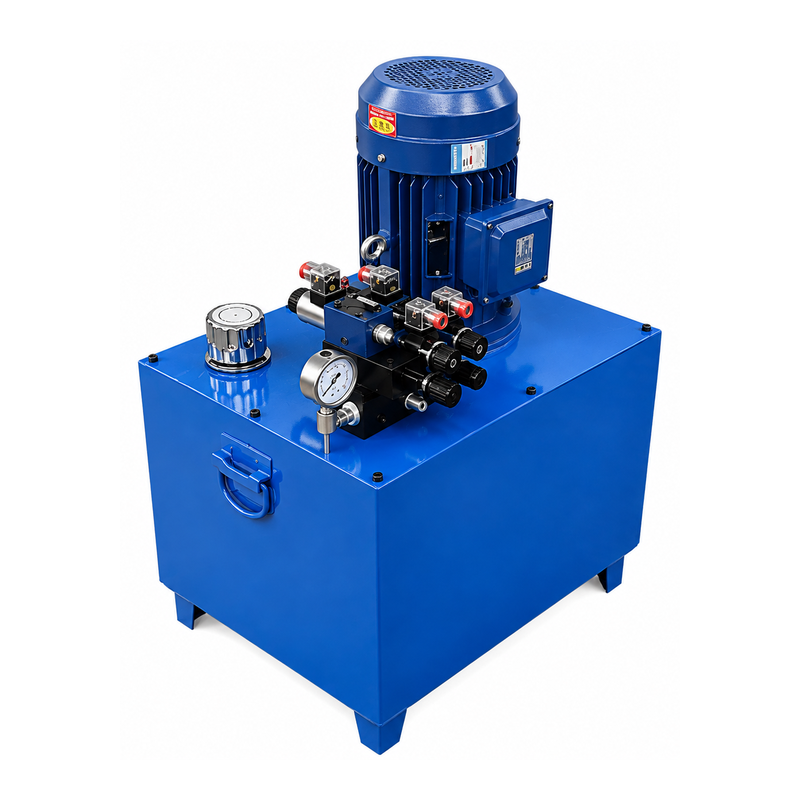

Power UnitMotor, pump station and valves are selected by capacity, speed and local voltage.

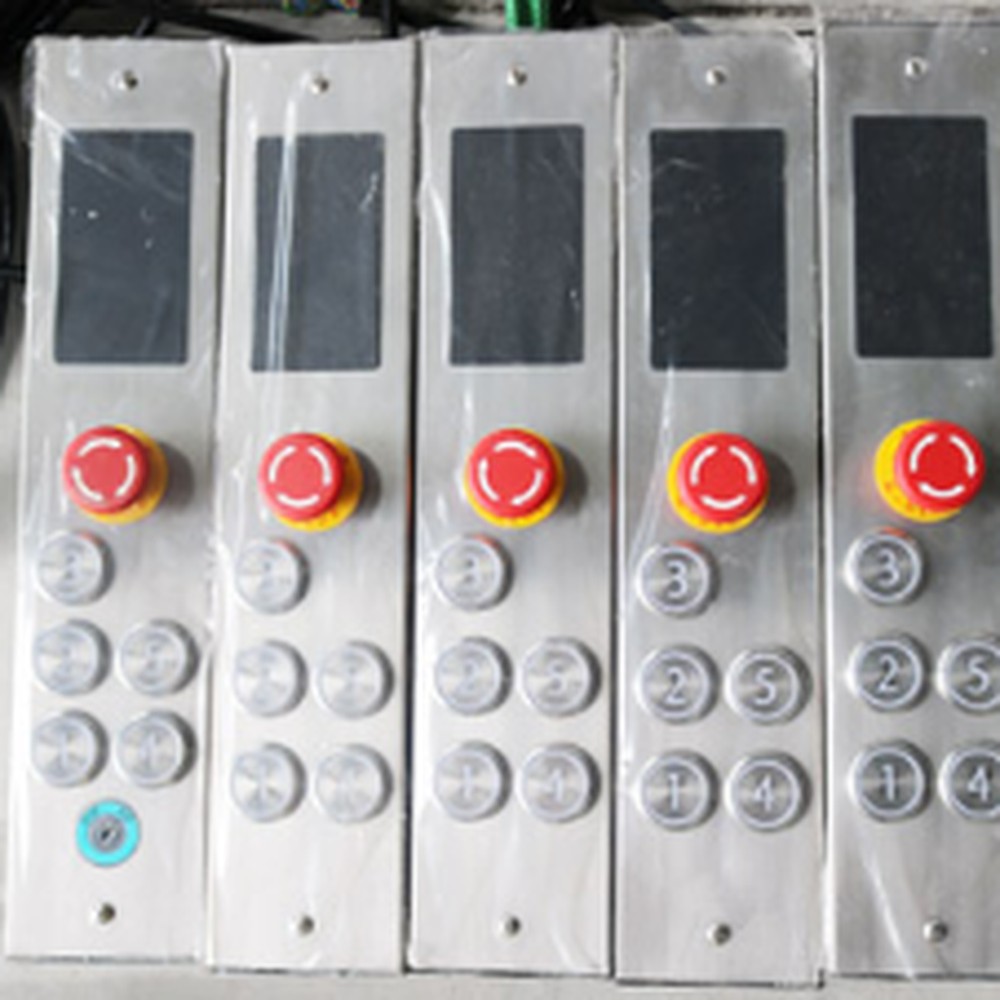

Control BoxFloor buttons, emergency stop and electrical protection can be arranged by project.

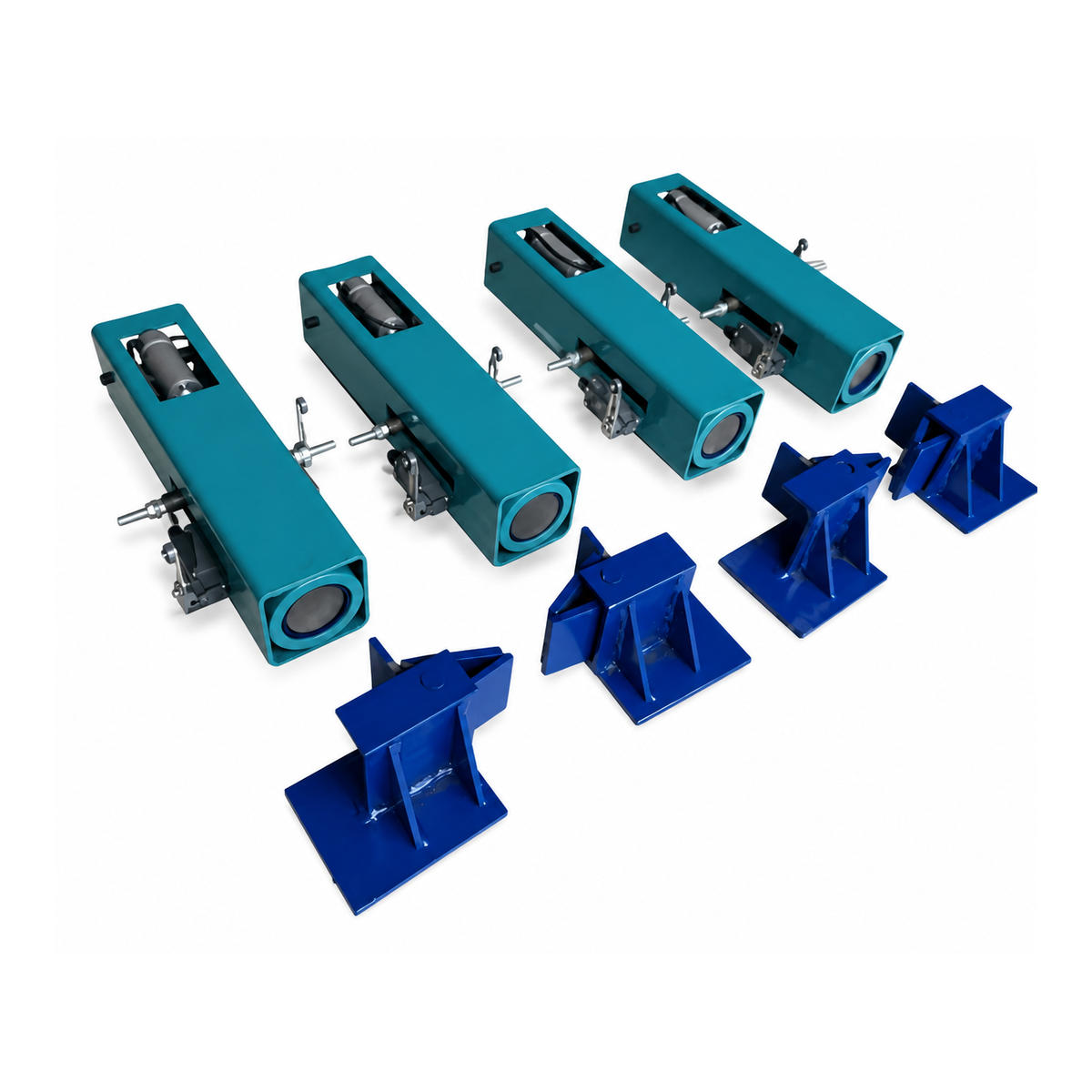

Anti-Sinking Support LockFor heavy-duty lifts, it helps support the platform at upper floors when cargo is loaded onto the platform.

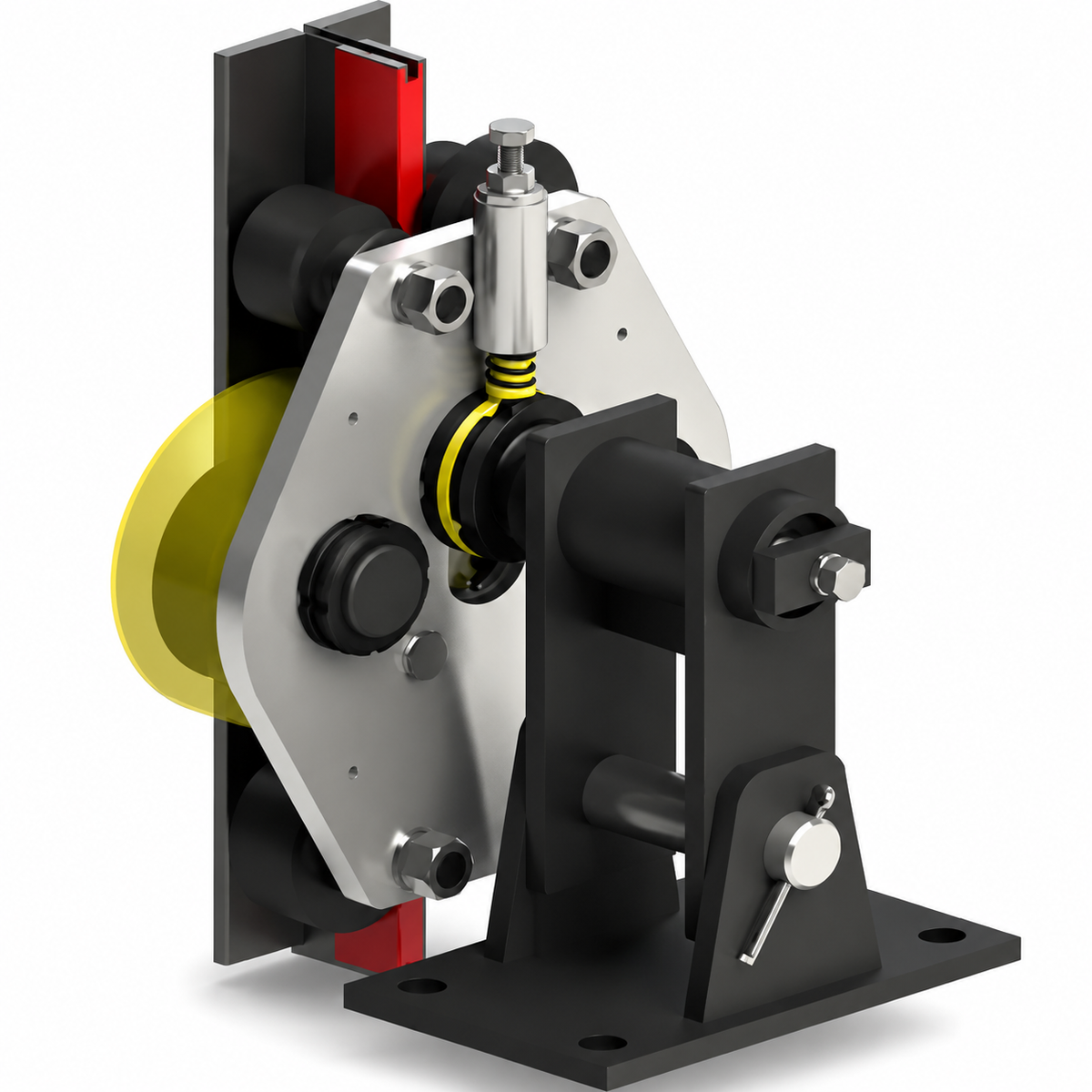

Mechanical Fall Arrest DeviceHelps stop sudden platform falling when chain slack or abnormal movement occurs.
Production Test & Shipment Preparation
Checked Before Your Goods Lift Leaves the Factory
Before shipment, we check the main structure, hydraulic components, control items and packing details according to the confirmed configuration.

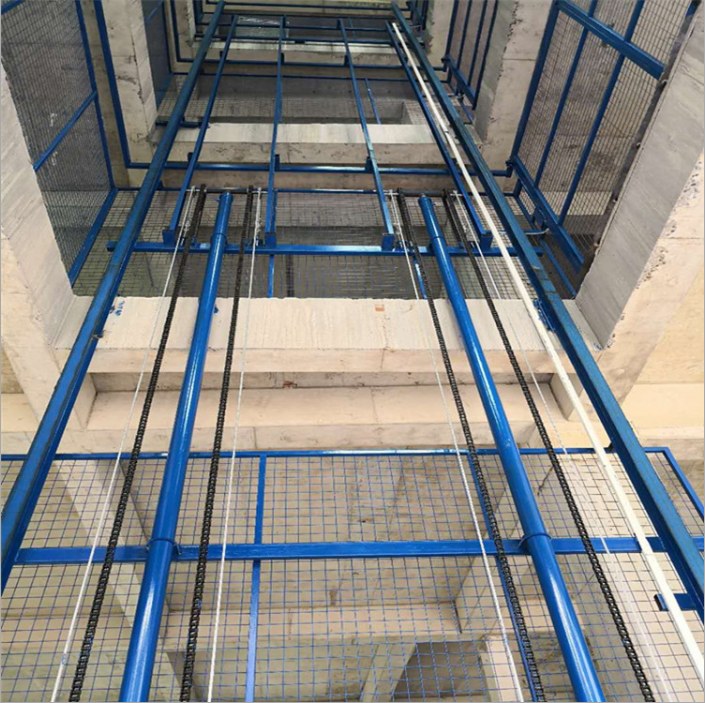

Assembly CheckStructure Assembly
Main structure, platform and guide rail parts are checked according to the confirmed dimensions.

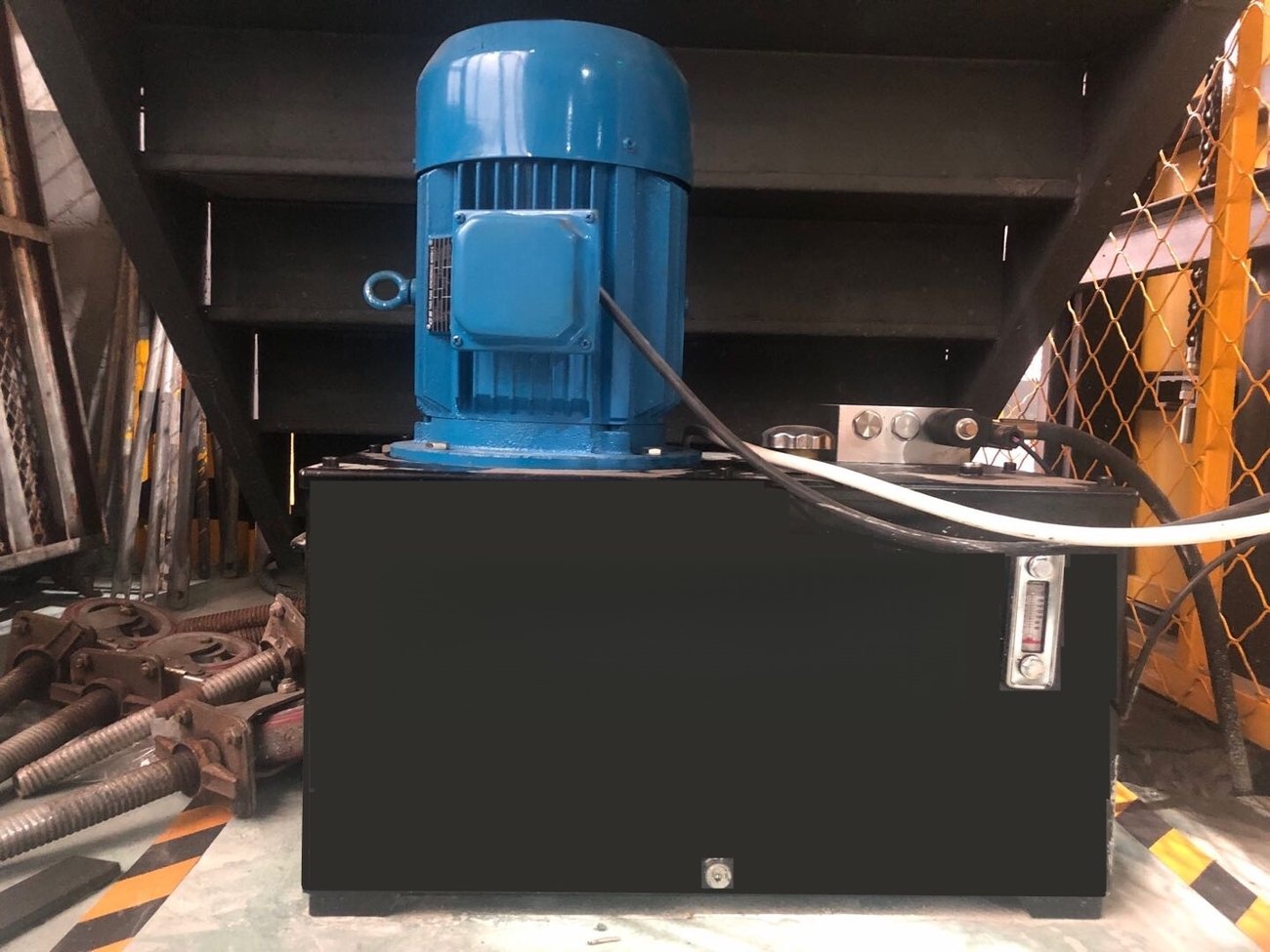

Hydraulic SystemHydraulic Inspection
Power unit, cylinder, hoses and related hydraulic parts are checked before packing.

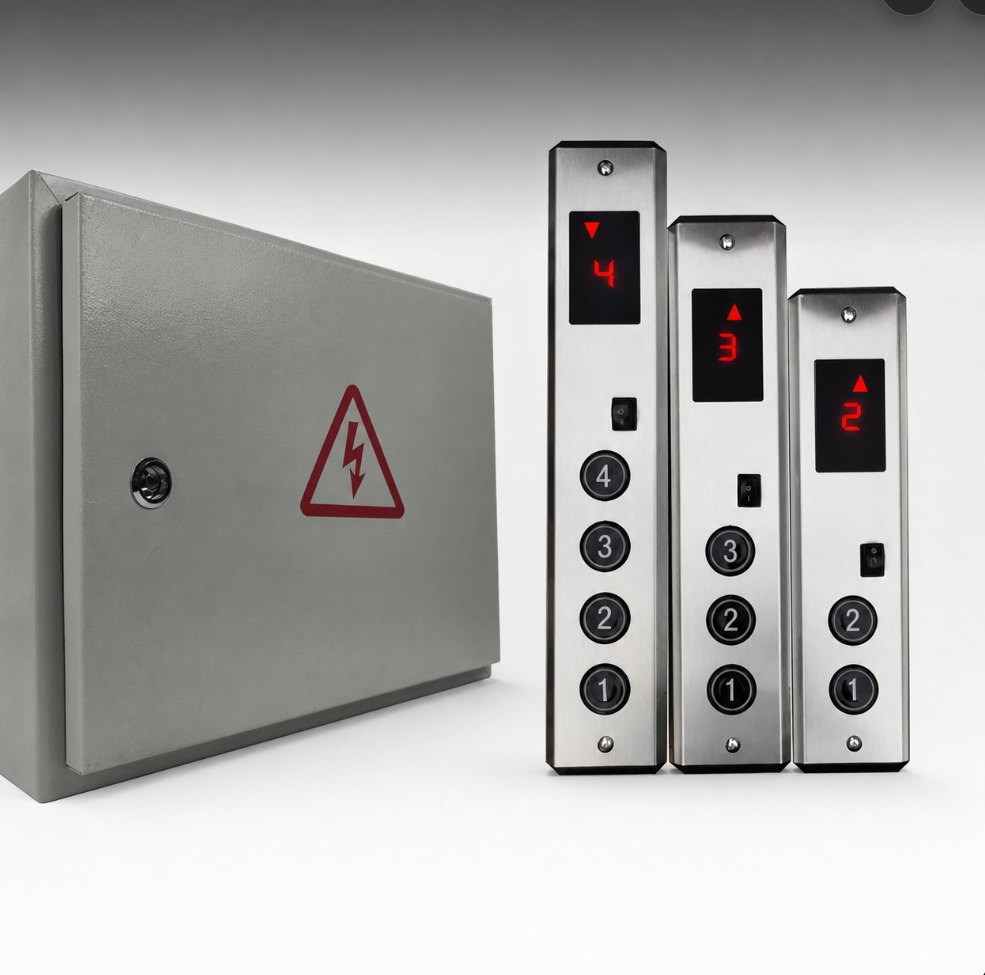

Control SystemControl Test
Control box, limit switches and emergency stop functions are checked for basic operation.

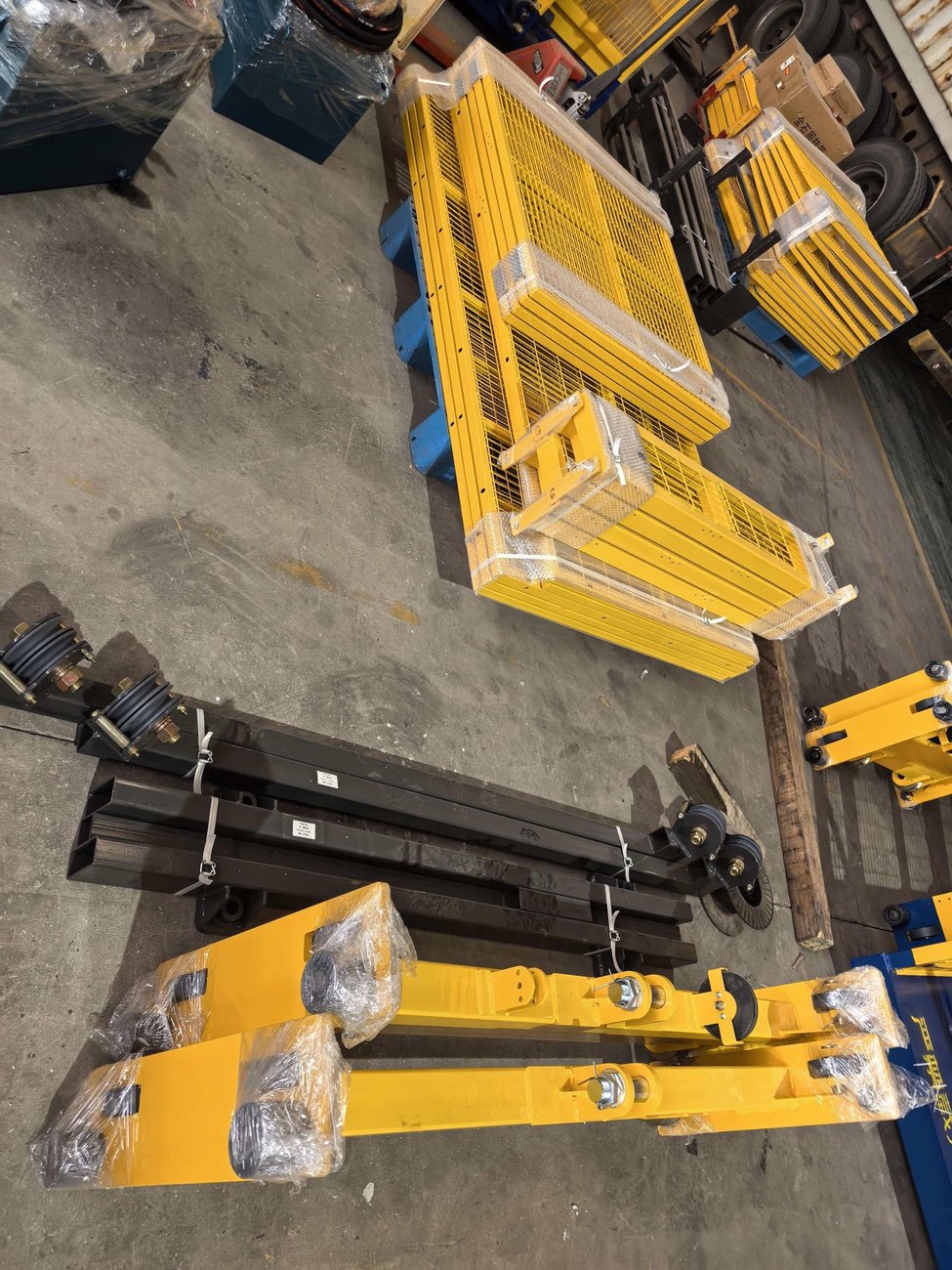

Packing & ShippingPacking Before Shipment
Parts are packed and marked for easier checking after arrival and local installation.
Optional Configurations for Your Goods Lift
Different sites need different entrance methods, enclosure styles, platform surfaces and control settings. These options can be selected according to the cargo, floors and installation condition.

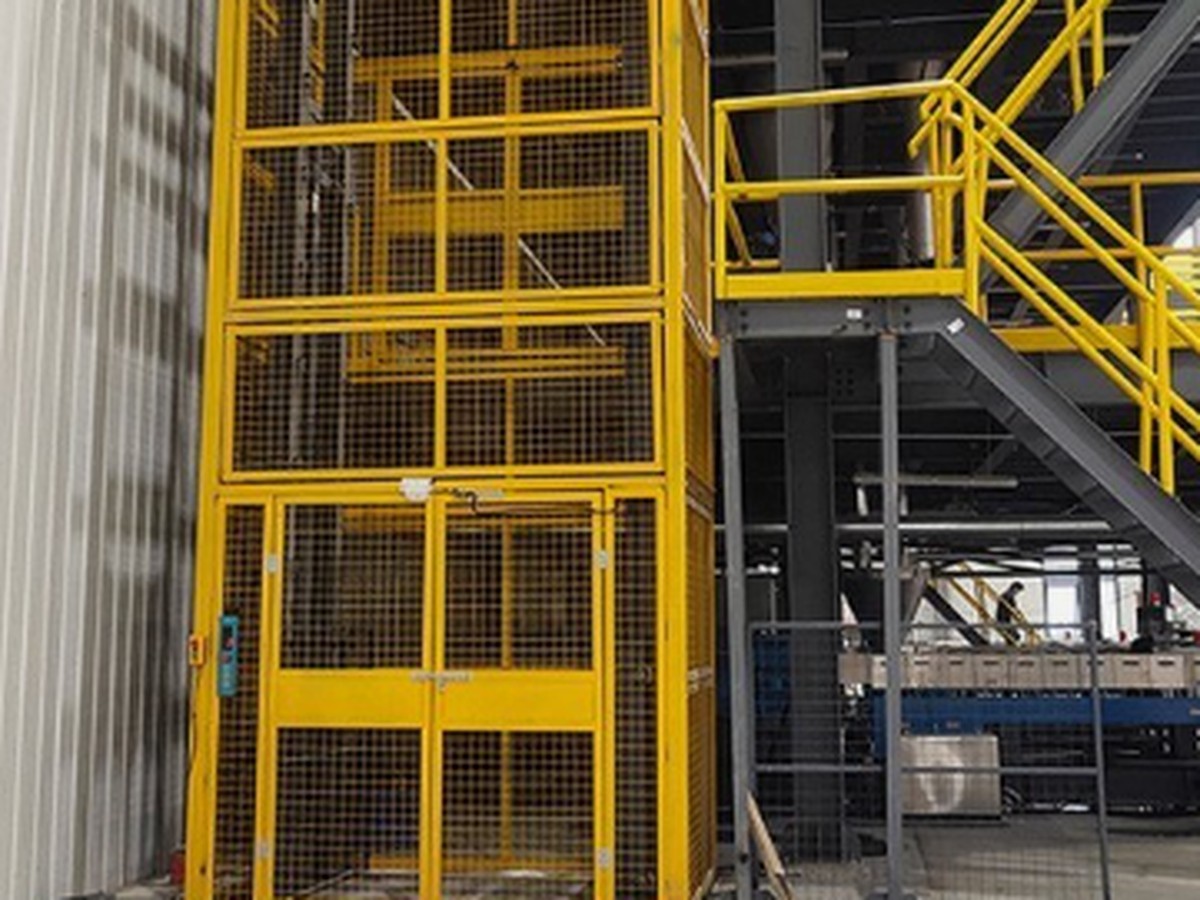

Mesh EnclosureUsed when the lifting area needs guard protection or a more enclosed structure.

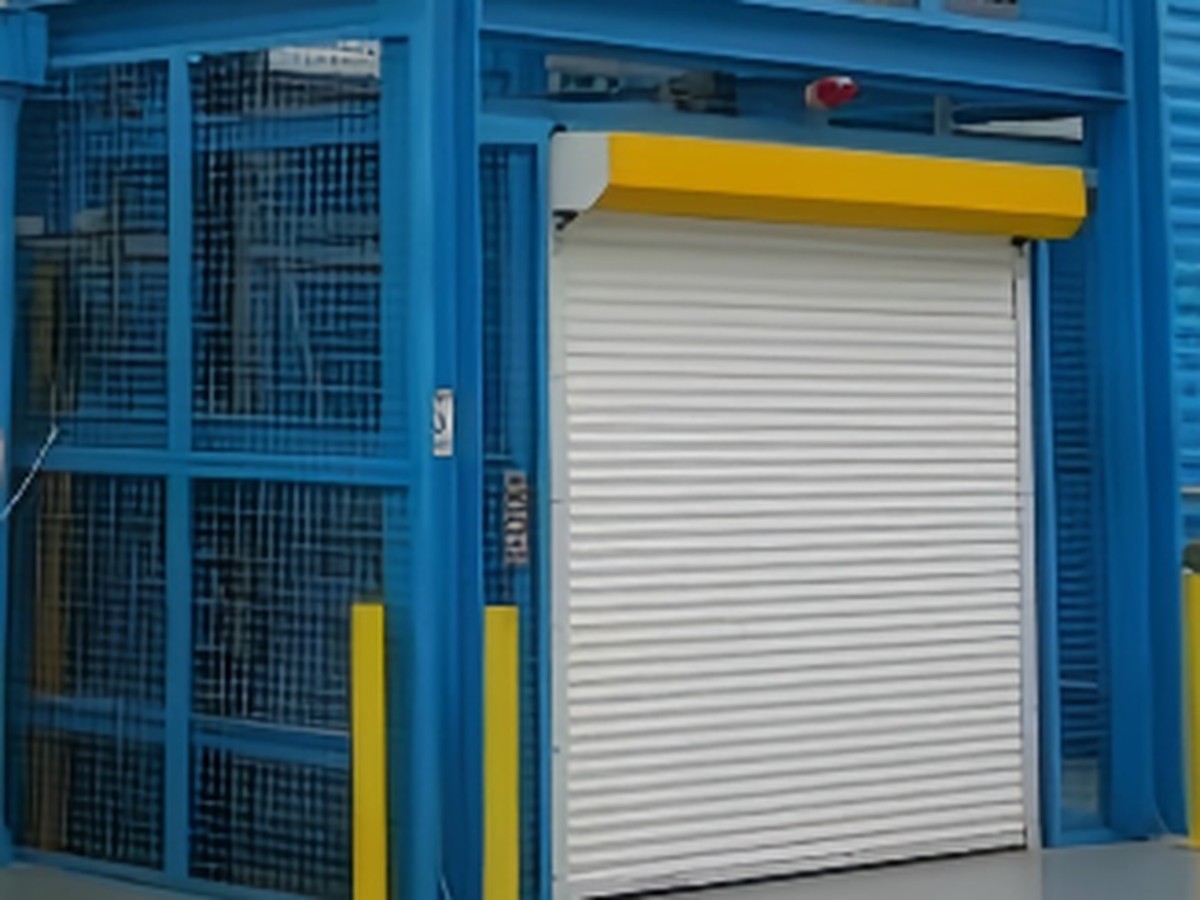

Roller Shutter DoorSuitable for warehouse entrances where a compact door style is preferred.

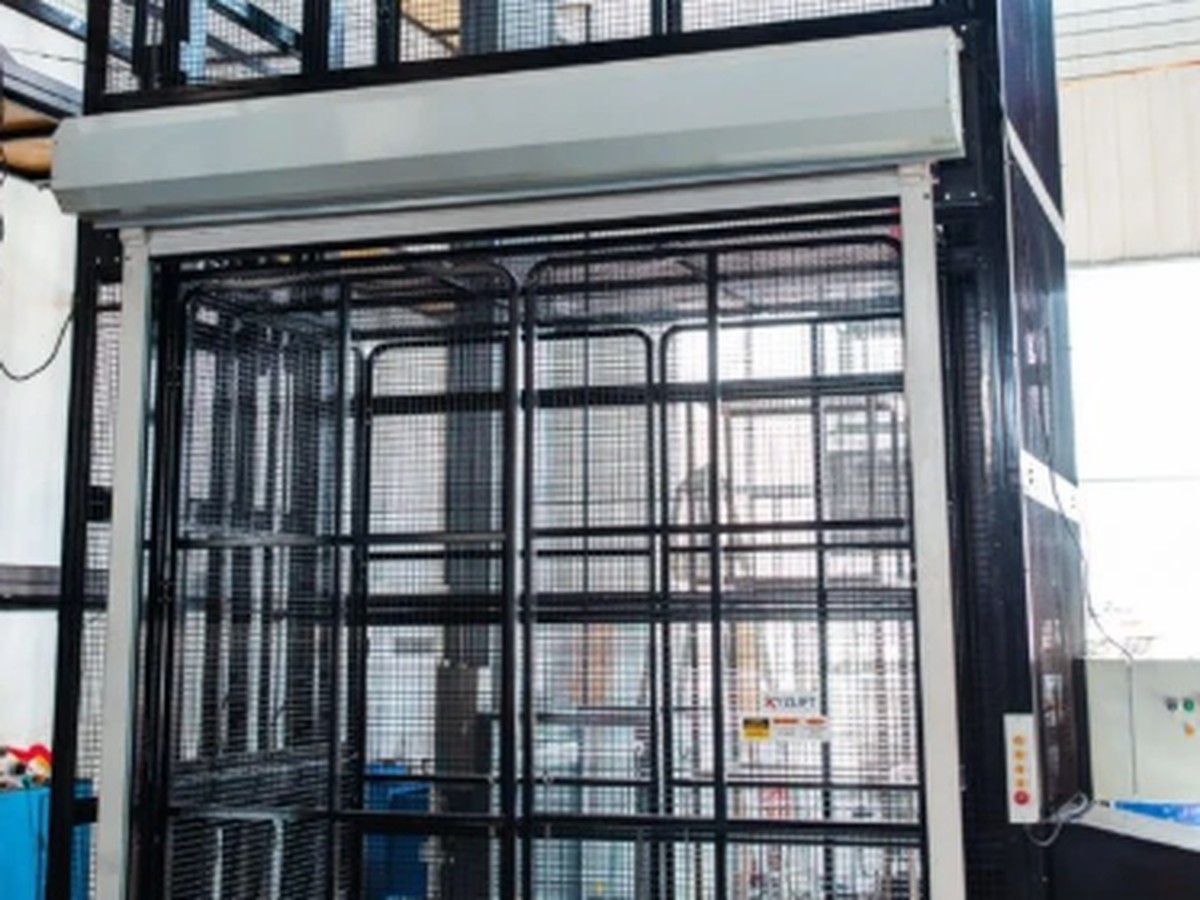

Landing Safety FenceHelps separate the floor opening area and reduce unnecessary access risk.

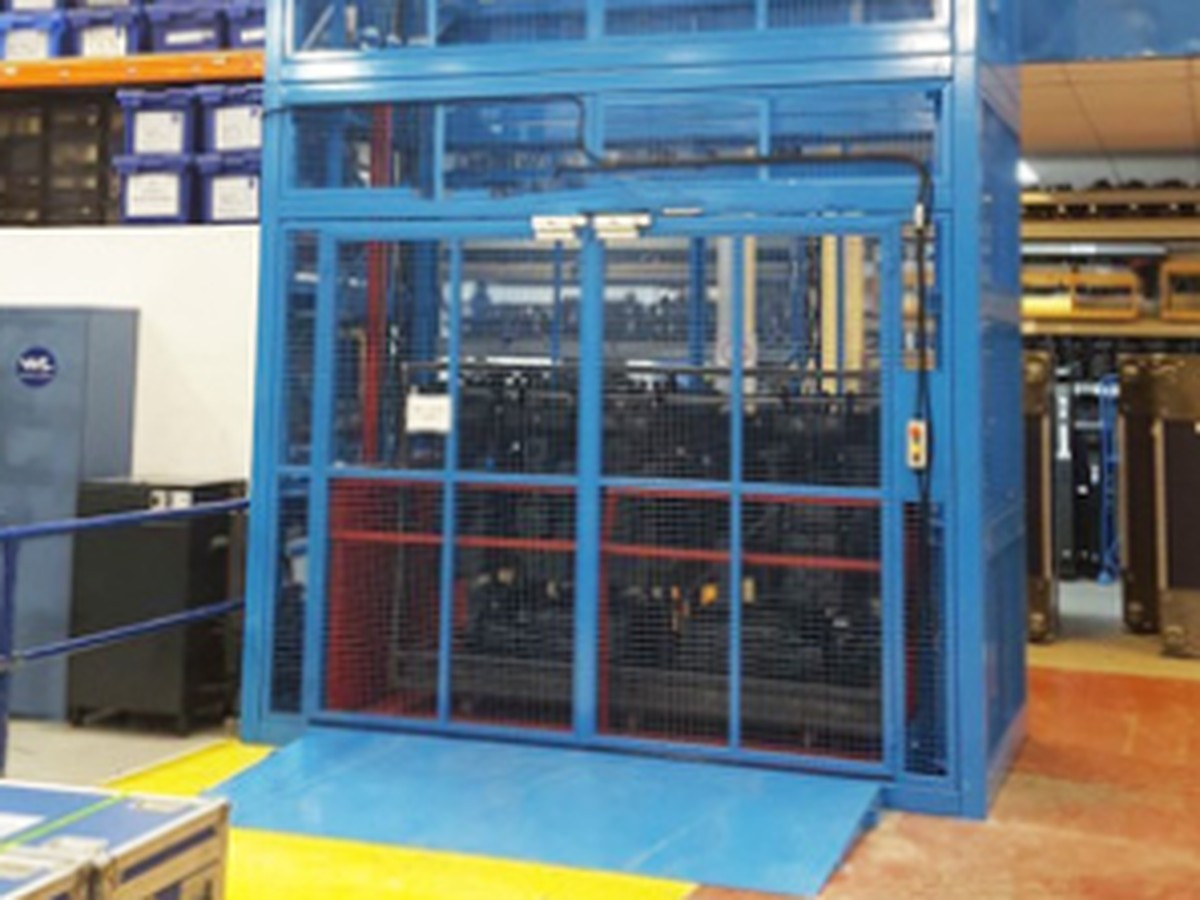

Ramp / No-Pit SolutionCan be discussed when the site cannot make a pit or needs easier floor-level loading.

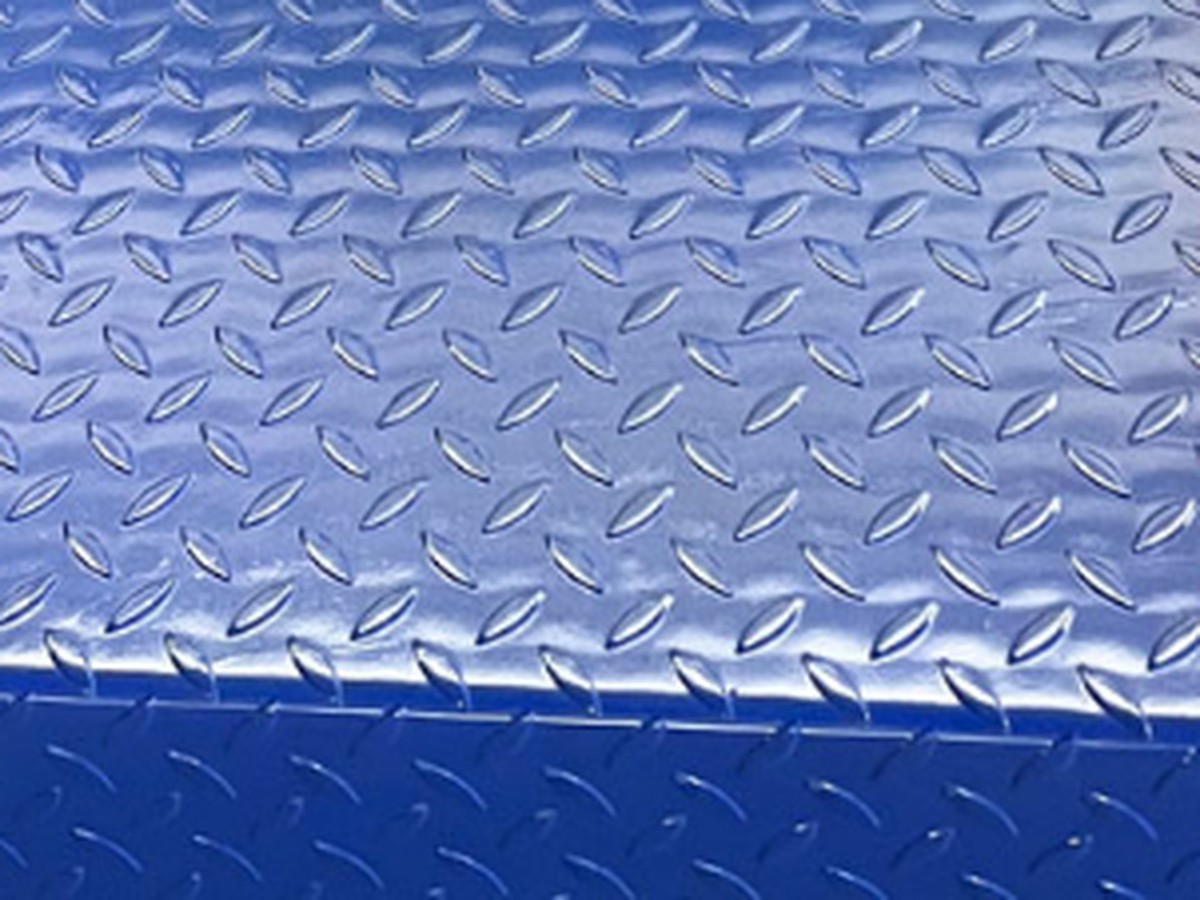

Platform SurfaceAnti-slip plate or custom platform surface can be selected according to cargo handling.

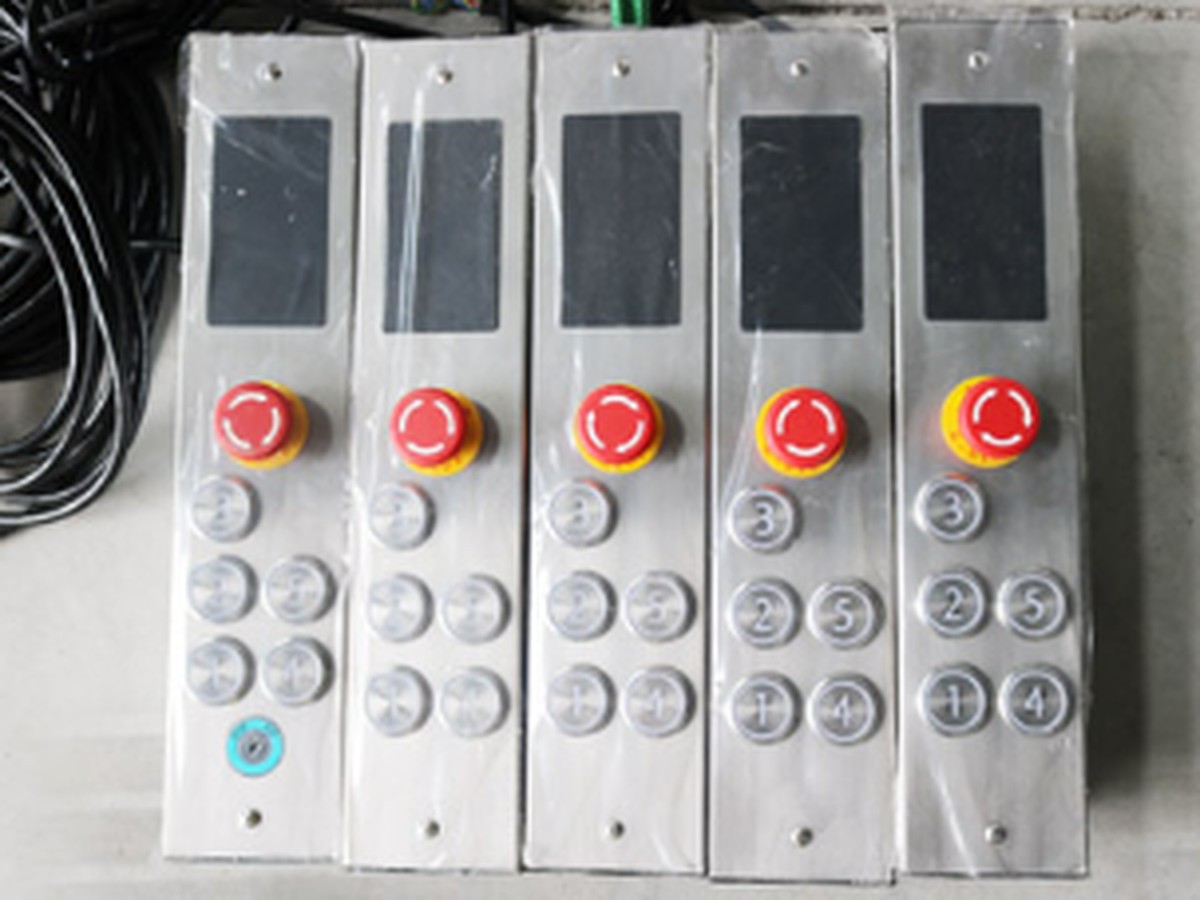

Control CabinetButton box, floor call buttons and wiring can be arranged according to site use.

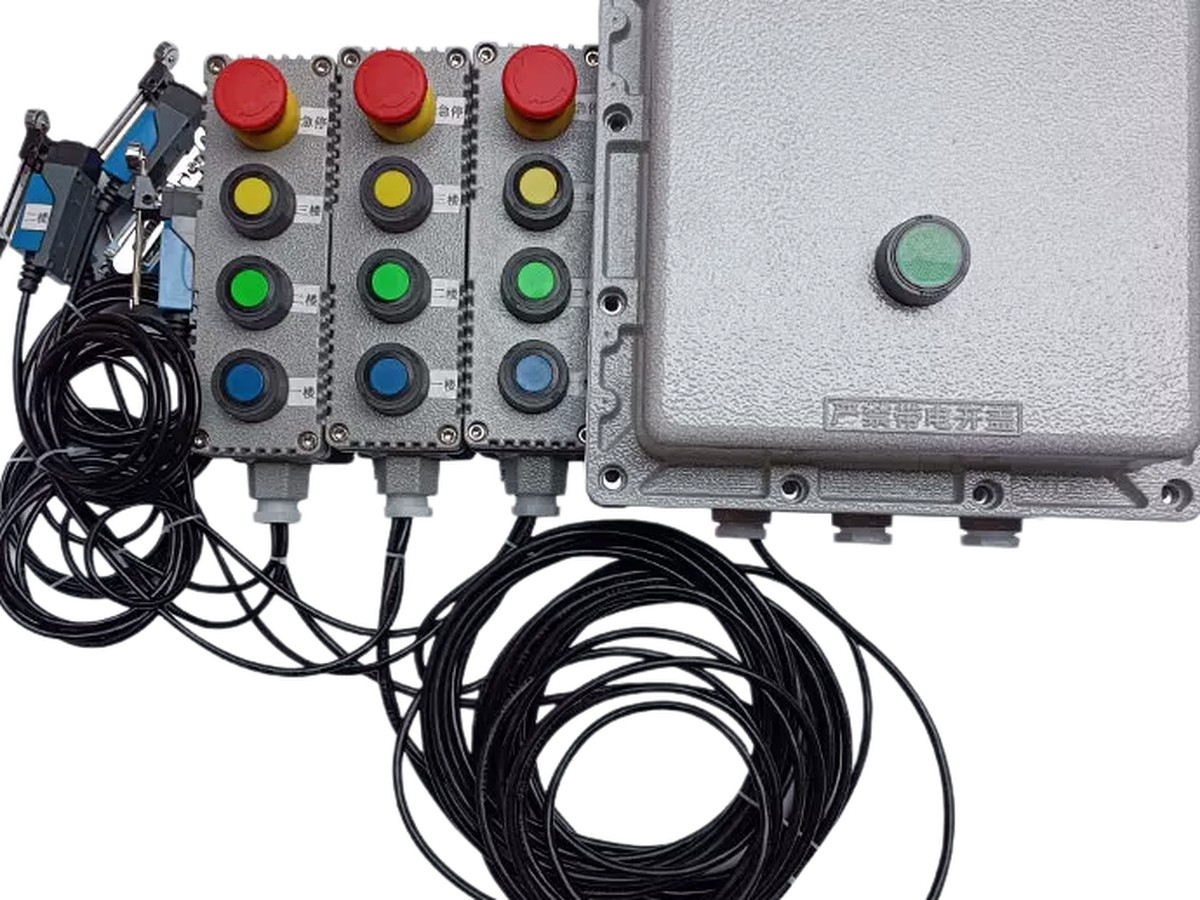

Special Electrical ConfigurationFor hazardous or special environments, local standards, area classification and required electrical components must be confirmed before design.

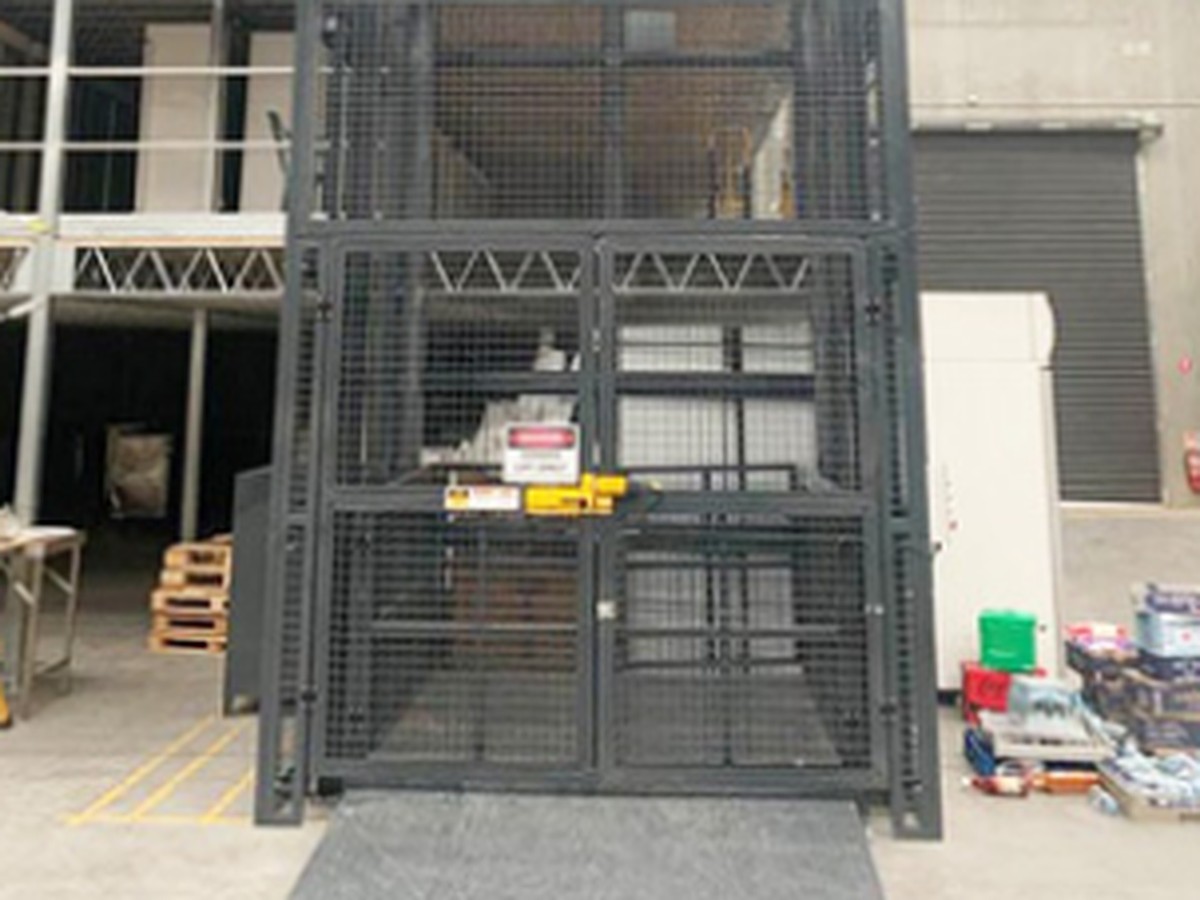

Interlock / Safety LockDoor interlock or safety lock options can be discussed for floor entrance control.
Goods Lift Product Videos
These short videos show real cargo-only hydraulic goods lift projects, helping customers quickly understand the platform structure, enclosure style and working scene.

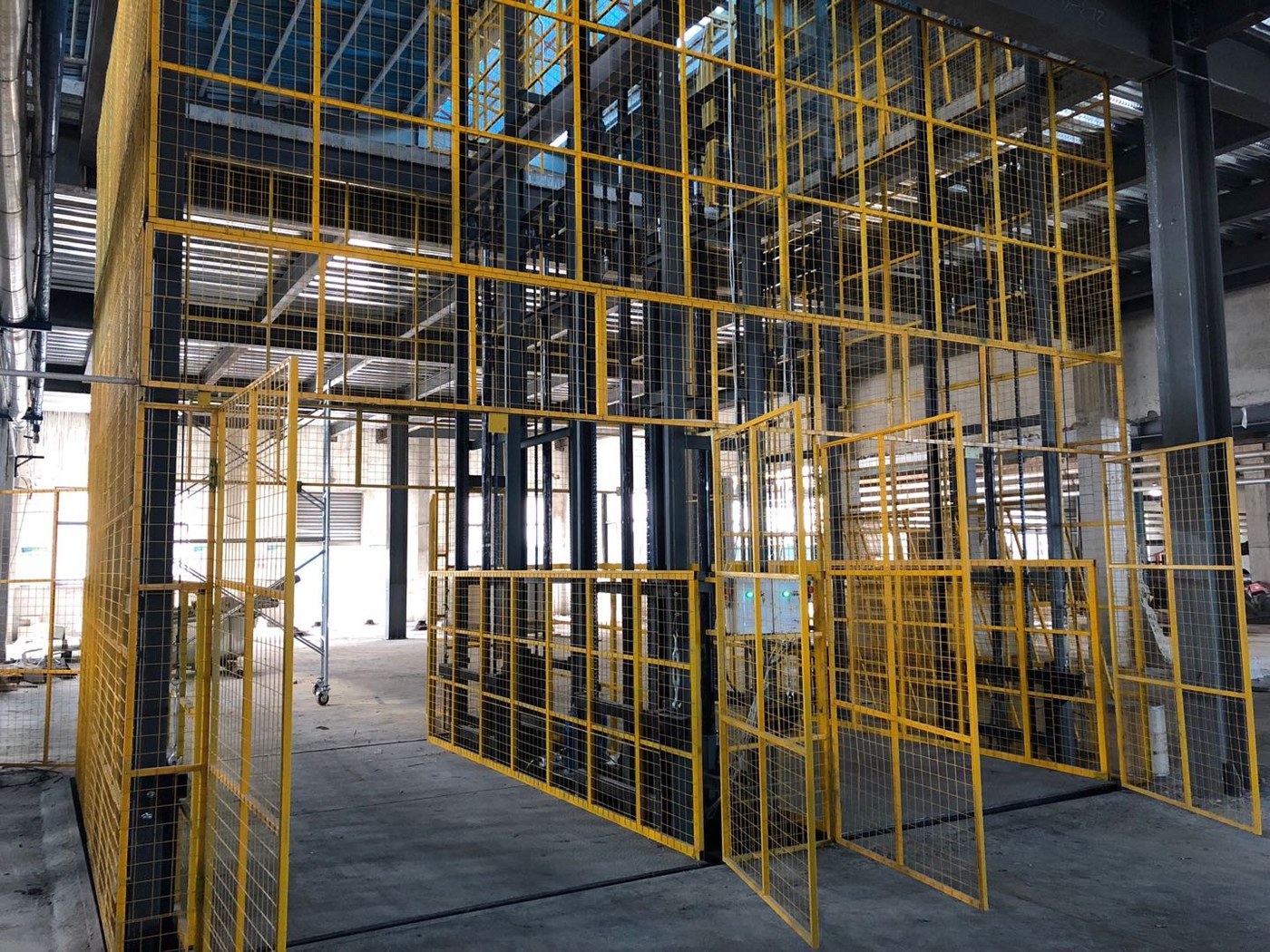

Goods Lift Project Show
Shows the cargo-only lift platform, guide rail structure and enclosed working area in a real project scene.
Custom Goods Lift Display
Shows another goods lift project example for customers to compare the structure, entrance and site application.
Knowledge of Installation

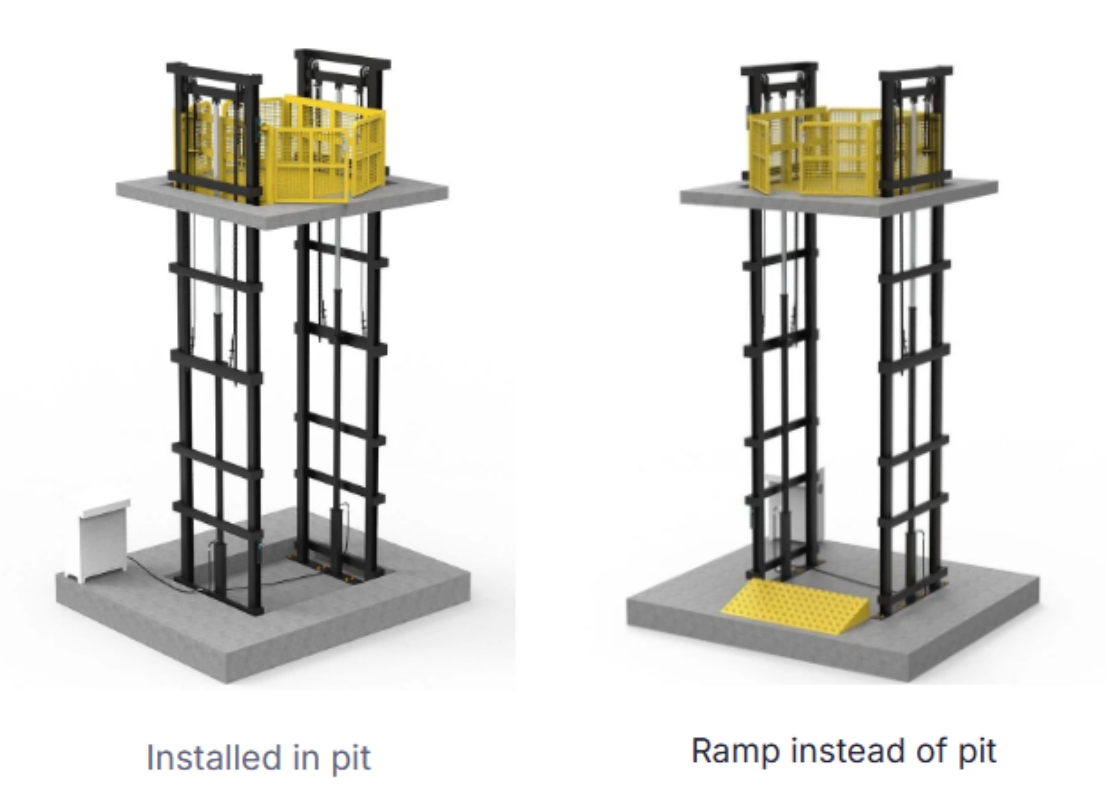

Pit Issue
For cargo lifts, the pit condition affects platform entrance height, loading method and installation work. If the site cannot make a pit, a small loading ramp may be used after confirming the platform height and cargo handling method.
- Pit installation helps the platform stay level with the ground.
- No-pit installation may need a ramp or special entrance design.
- Final structure should be confirmed with site photos and dimensions.
Common installation scenarios

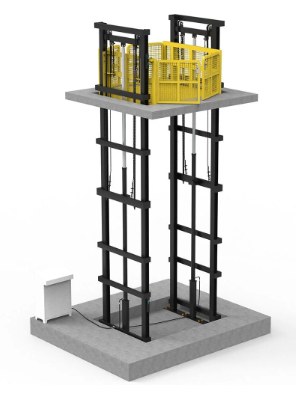

Floor Hole

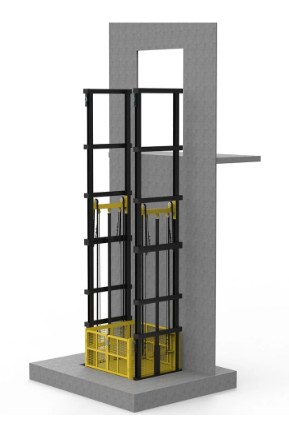

On The Wall
In The Shaft

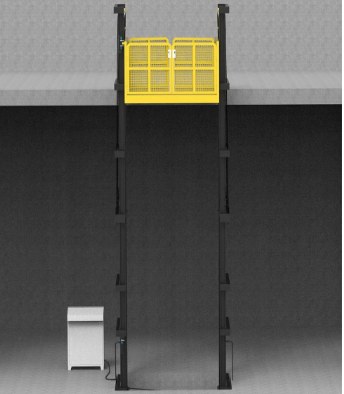

On The Mezzanine
Operation & Maintenance
If you encounter problems while using a cargo-only goods lift, we can provide remote technical support based on photos, videos and operation details.
Request Support
Safety Instruction
Safety instructions can be posted near the control buttons to support safer cargo operation.

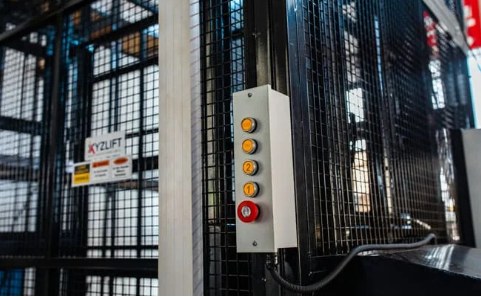

Operation Guideline
Before operating the goods lift, the operator can follow the basic operation guideline for correct cargo handling.
Maintenance Guideline
A daily maintenance checklist helps users check the platform, control system and hydraulic system regularly.

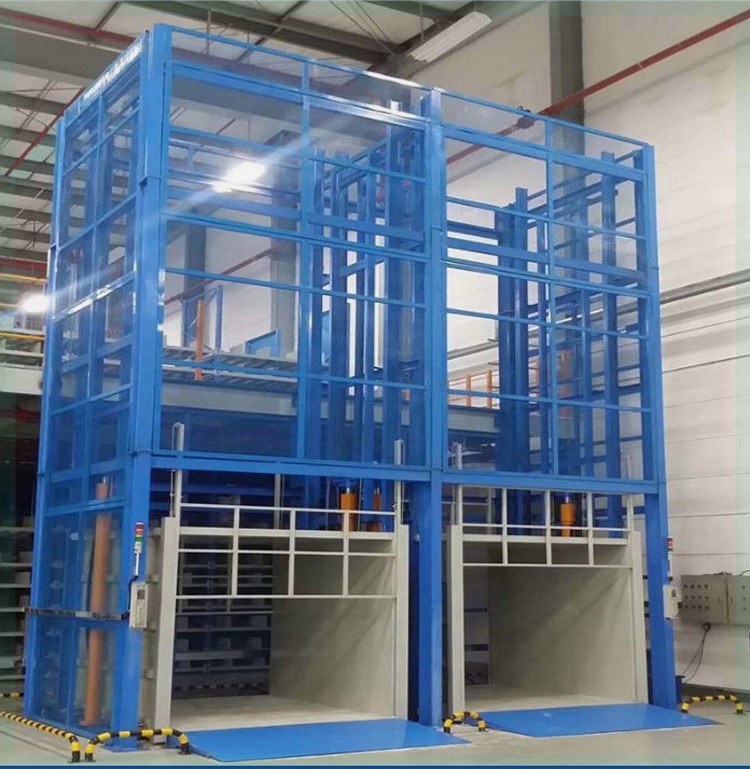

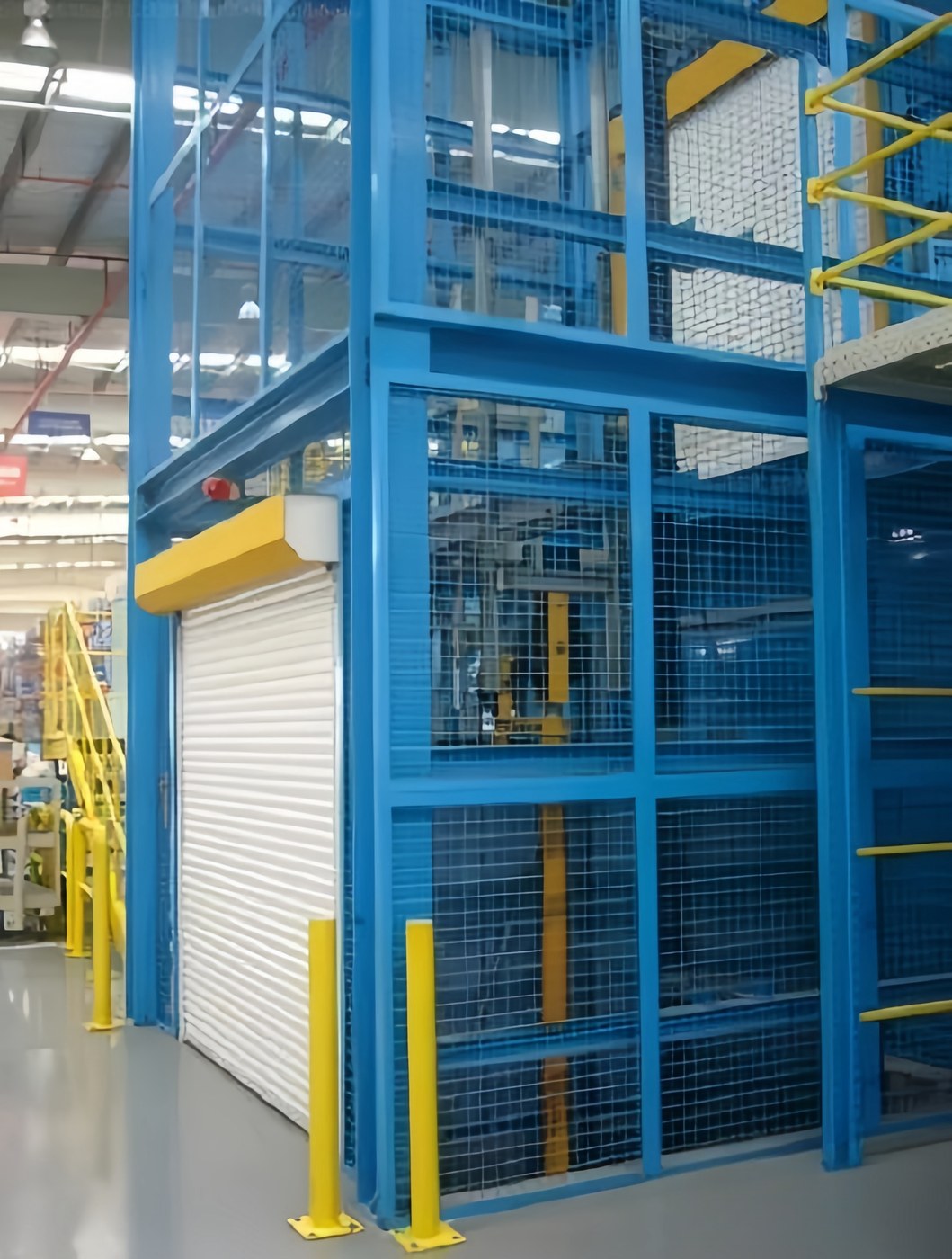

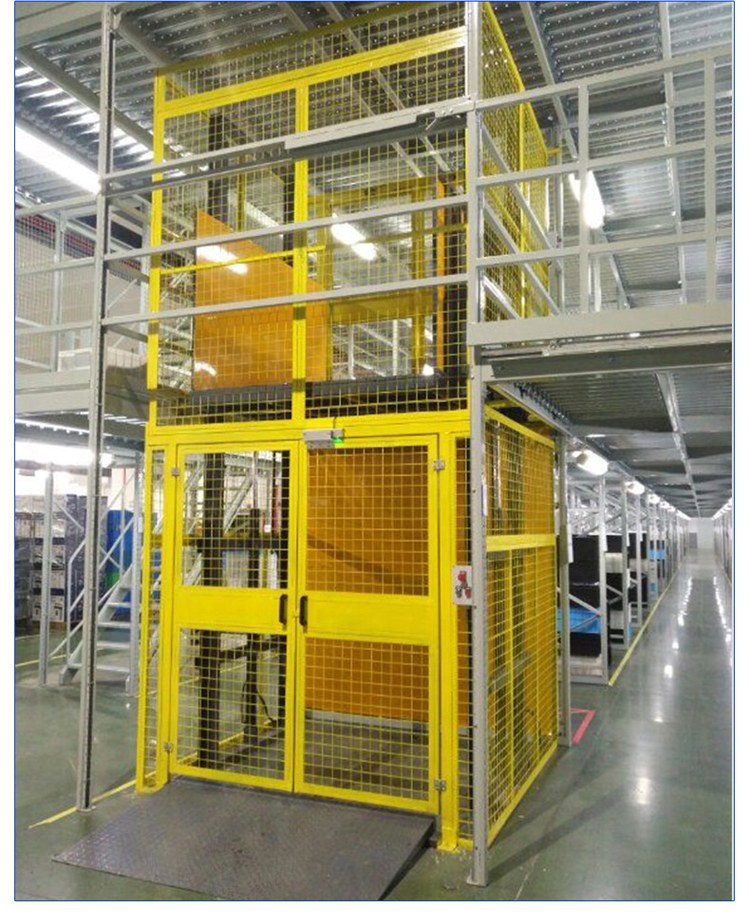

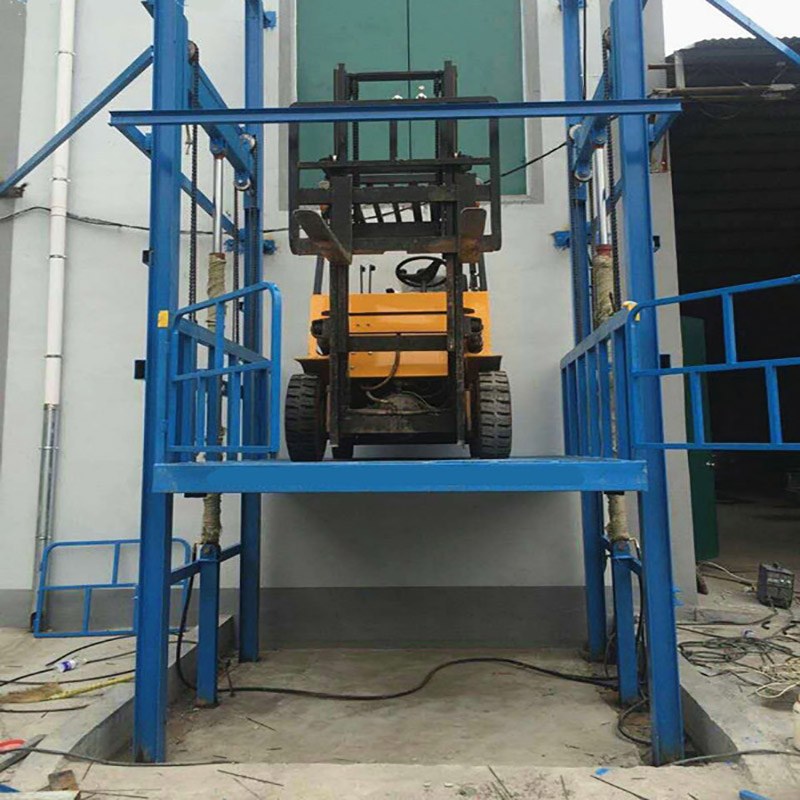

Goods Lift Project Show

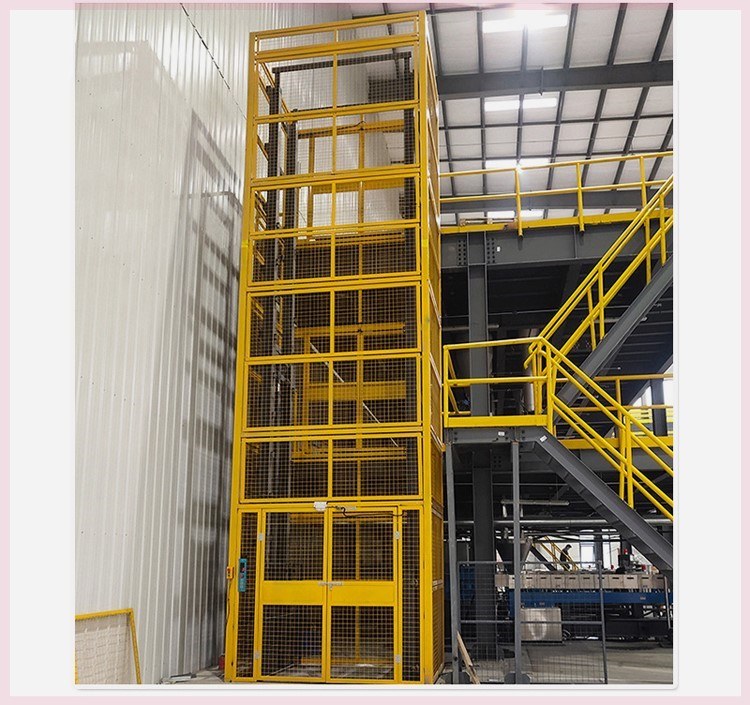

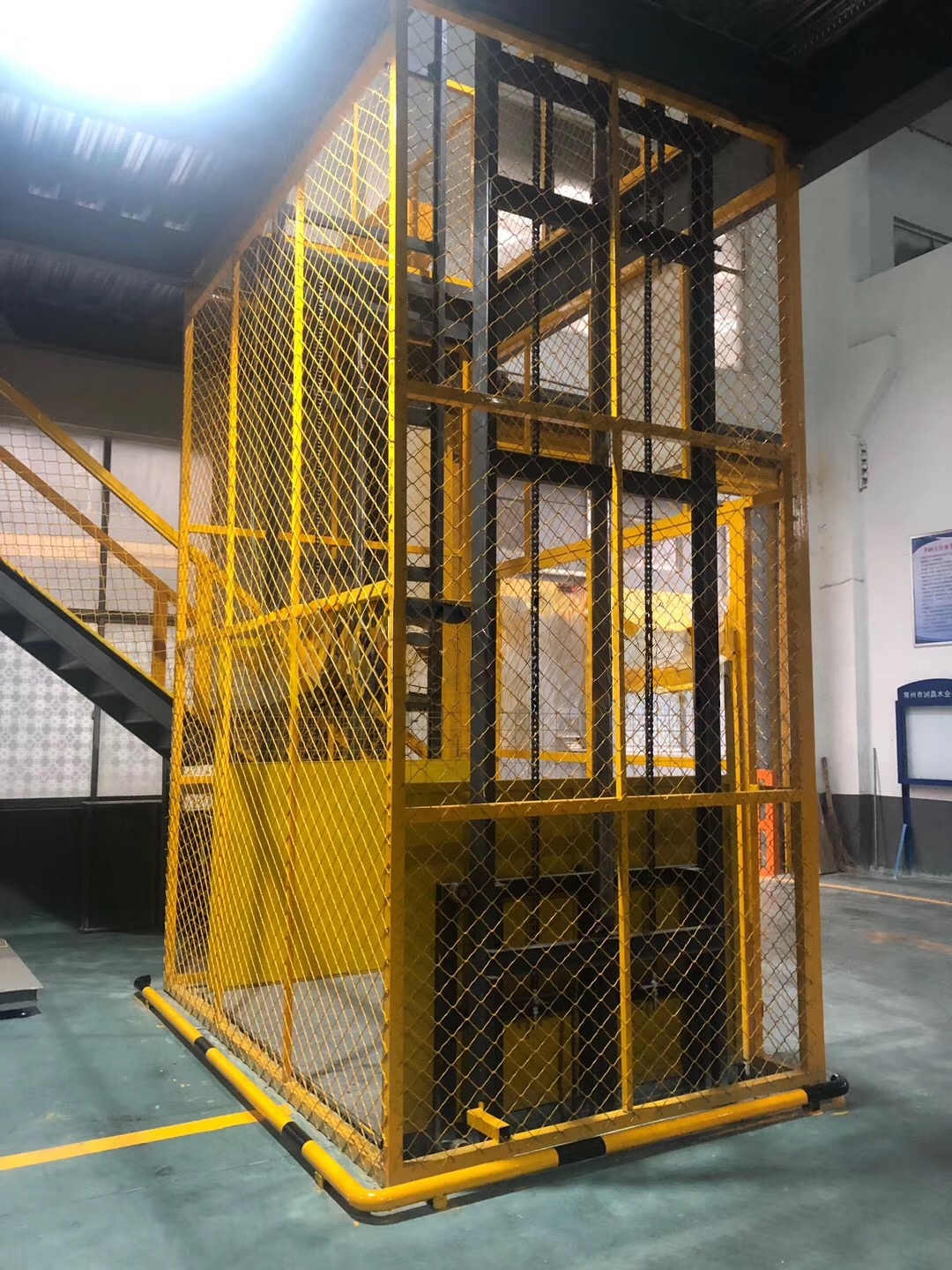

Warehouse Floor Transfer
Cargo-only goods lift for moving goods between warehouse floors.

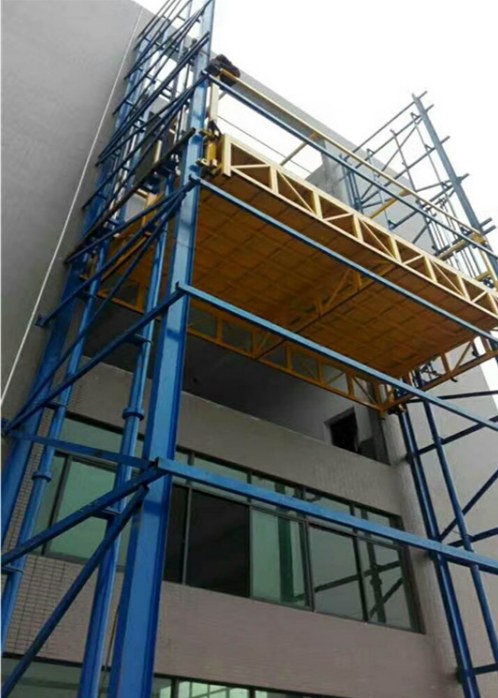

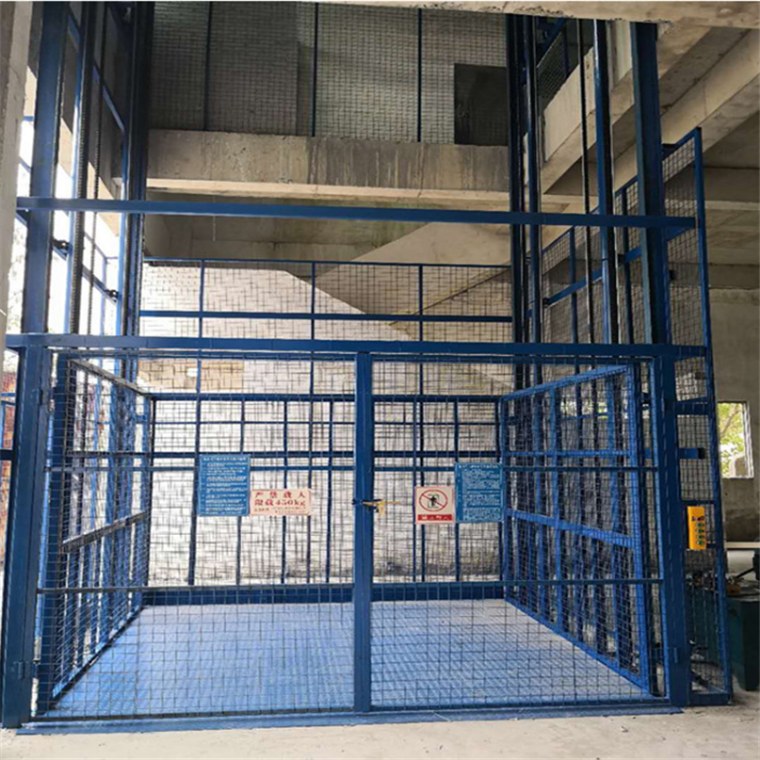

Factory Mezzanine Lift
Custom lift structure for mezzanine material handling.
Mezzanine Loading Area
Lift platform and enclosure arranged according to site layout.

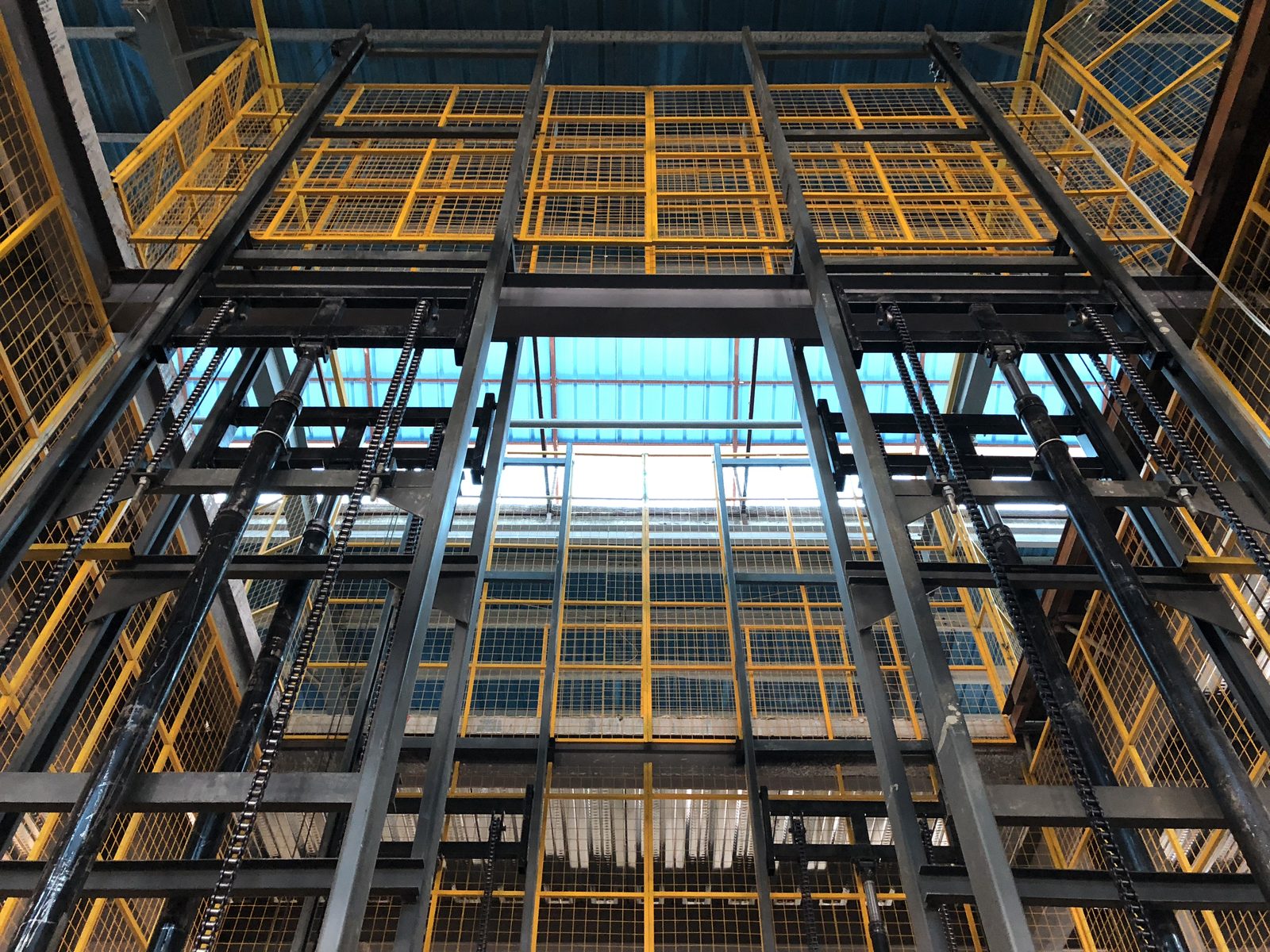

Factory Workshop Lift
Vertical cargo transfer solution for workshop production flow.
Heavy Goods Transfer
Large goods lift structure for industrial cargo handling.
Compact Site Layout
Project layout selected according to available entrance space.
Multi-Level Handling
Guide rail and platform configuration for multi-level cargo movement.

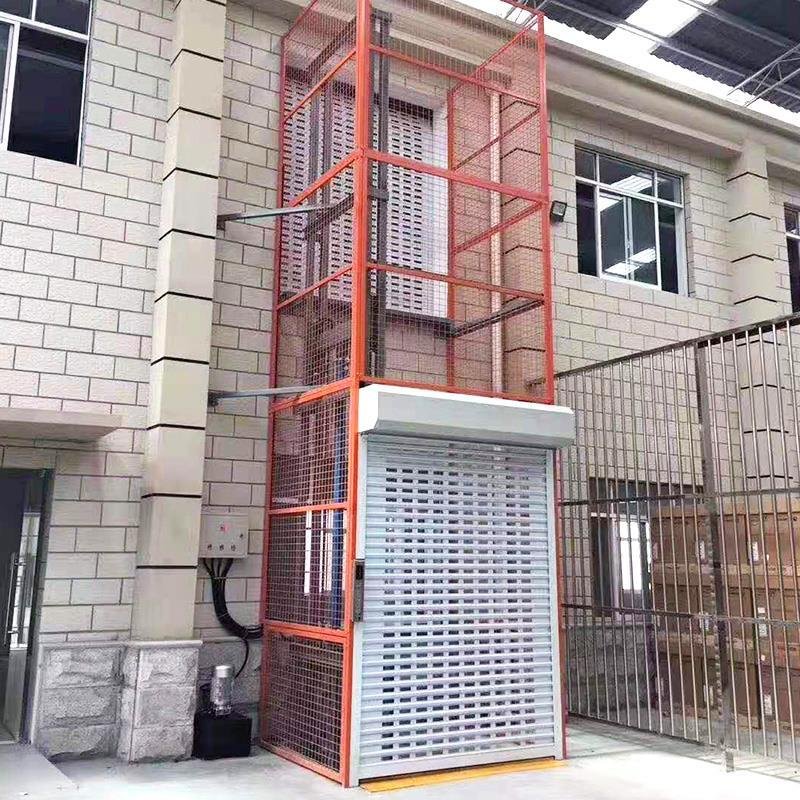

Custom Enclosed Lift
Enclosure, doors and platform can be adjusted by project requirements.
Delivery Process
How We Handle Your Custom Goods Lift Order
A non-standard goods lift should be confirmed step by step. This process helps both sides reduce mistakes before production and shipment.
1
Send Requirements
Load capacity, platform size, lifting height, entrance direction and site photos.
2
Check Solution
We review the structure, site condition, pit or no-pit option and voltage requirement.
3
Confirm Drawing
Main dimensions and configuration are confirmed before production starts.
4
Production
Steel structure, platform, hydraulic system and control system are prepared according to the order.
5
Factory Check
Key structure, hydraulic and control parts are checked before packing.
6
Ship & Support
Goods are packed for shipment, with documents and installation guidance for your local team.
For a faster quotation, please send cargo weight, platform size, lifting height, number of floors, site photos and destination country.
Questions
Frequently Asked Questions
Quick answers for cargo-only hydraulic goods lift projects before sending an inquiry.
What is the delivery time for the goods lift?
Common customized goods lifts usually need production time after drawings and technical details are confirmed. The final delivery time depends on capacity, lifting height, enclosure, voltage and order quantity.
What details are required for specifying a goods lift?
- Load capacity and cargo type
- Platform size and lifting height
- Number of floors and entrance direction
- With or without pit, shaft, mesh enclosure or landing doors
- Local voltage, site photos and destination country
How many floors can a goods lift go?
It can be customized for different floor transfer needs. The practical design should be checked according to lifting height, shaft condition, guide rail structure and local installation requirements.
What is the maximum weight a goods lift can lift?
Our normal customized range is 0.5-5 tons. Larger capacity or special platform size should be reviewed according to the actual cargo, lifting height and site condition.
Can people ride this lift?
No. This is cargo-only material handling equipment. It is not designed or presented as a passenger elevator.
Who handles installation?
We can provide drawings, installation guidance and technical documents. Local installation, inspection and approval should be handled by the buyer or a local qualified team.
A Custom Goods Lift Designed for Your Site
Send the main project details first. After the basic parameters are clear, we can prepare an initial solution and quotation for your cargo-only lift project.
- Load capacity and cargo type
- Platform size W × D and lifting height H
- Number of floors and entrance direction
- Pit, ramp, shaft, mesh enclosure or landing door requirements
